Product Description

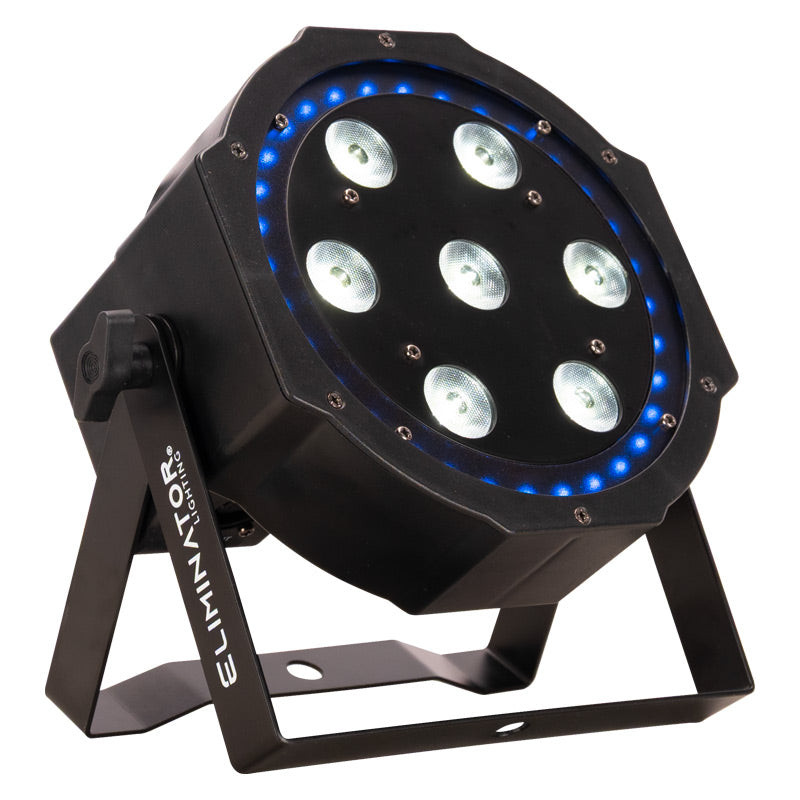

Eliminator Lighting LP 8R RGBW LED PAR Fixture
Overview
The Eliminator LP 8R combines powerful wash lighting with dynamic ring effects in a compact, lightweight fixture designed for DJs, bands, event production, clubs, lounges, and permanent installations. At its core are seven 8W RGBW 4-in-1 LEDs that deliver bright, saturated colors, smooth pastel tones, and crisp white light with excellent color mixing. Surrounding the center LED's are 32 RGB 3-in-1 ring LED's that create vibrant accent lighting, animated chases, and eye-catching visual effects that enhance any performance or event.
With four DMX channel modes (3, 6, 13, or 38 channels), the LP 8R offers flexible programming for everything from simple operation to advanced control of both the center LED's and outer ring effects. Multiple operating modes—including DMX512, Primary-Secondary, Auto Run, Sound Active, and Wireless Remote Control- allow the fixture to integrate seamlessly into professional lighting systems or operate independently for quick event setups.
Additional features such as white balance adjustment, smooth 0–100% linear dimming, and a high-speed electronic strobe provide the flexibility needed for a wide range of lighting applications. A 4-digit, 7-segment LED display simplifies fixture setup, while 3-pin XLR DMX connections and IEC power input/output enable convenient installation and power linking.
Designed with efficiency and portability in mind, the LP 8R features long-life LEDs rated for up to 50,000 hours, temperature control protection for reliable performance, and a compact housing that weighs just 1.76 pounds, making it an excellent choice for mobile entertainers and permanent installations alike.
Specifications
SOURCE:
- 7 × 8W RGBW 4-in-1 Center LED's
- 32 × RGB 3-in-1 Ring LED's
- 50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA:
- Pure Color Output
- Excellent Color Mixing
- Smooth Wash Output
COLOR:
- RGBW 4-in-1 Center LEDs
- RGB 3-in-1 Outer Ring LEDs
- White Balance Setting
EFFECTS:

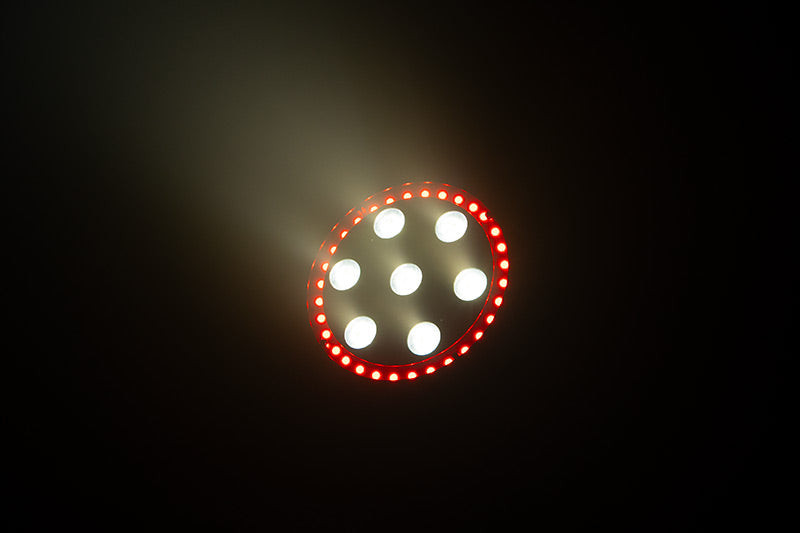

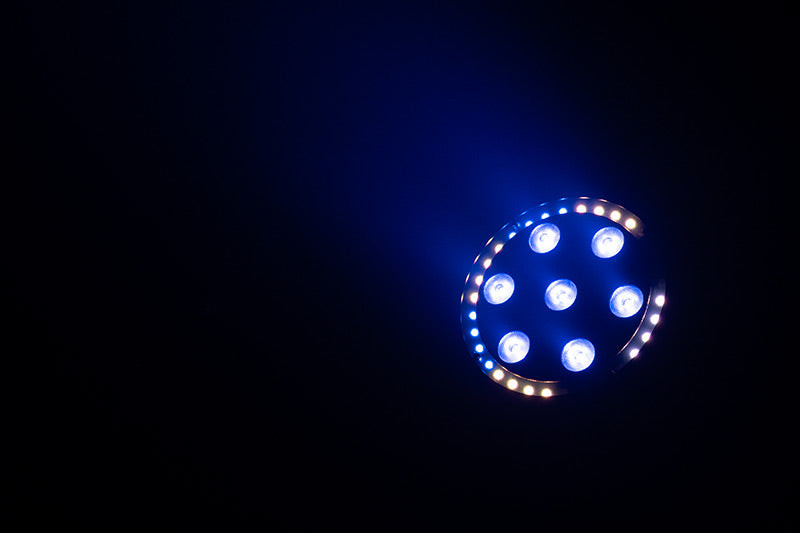

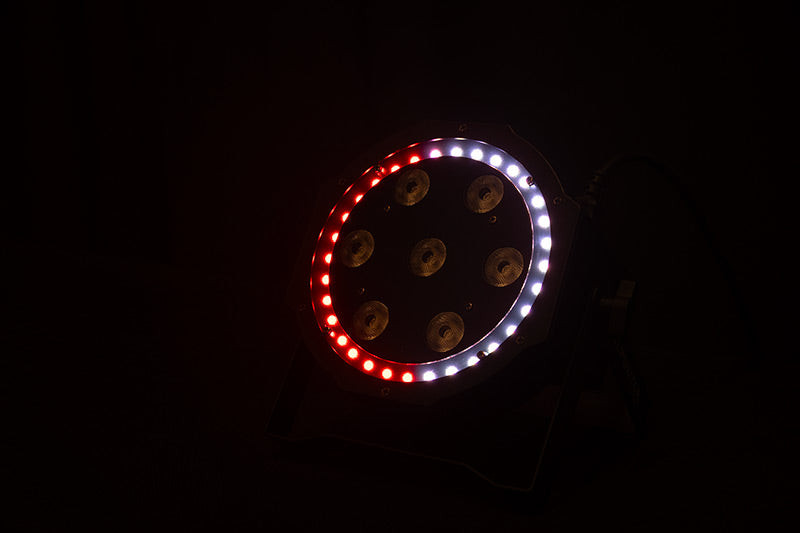

- Animated RGB Ring Effects
- 0–100% Linear Electronic Dimming
- High-Speed Synchronous Strobe
CONTROL / CONNECTIONS:
- 4 DMX Channel Modes (3 / 6 / 13 / 38 Channels)
- DMX512
- Primary-Secondary Mode
- Auto Run Mode
- Sound Active Mode
- Wireless Remote Control

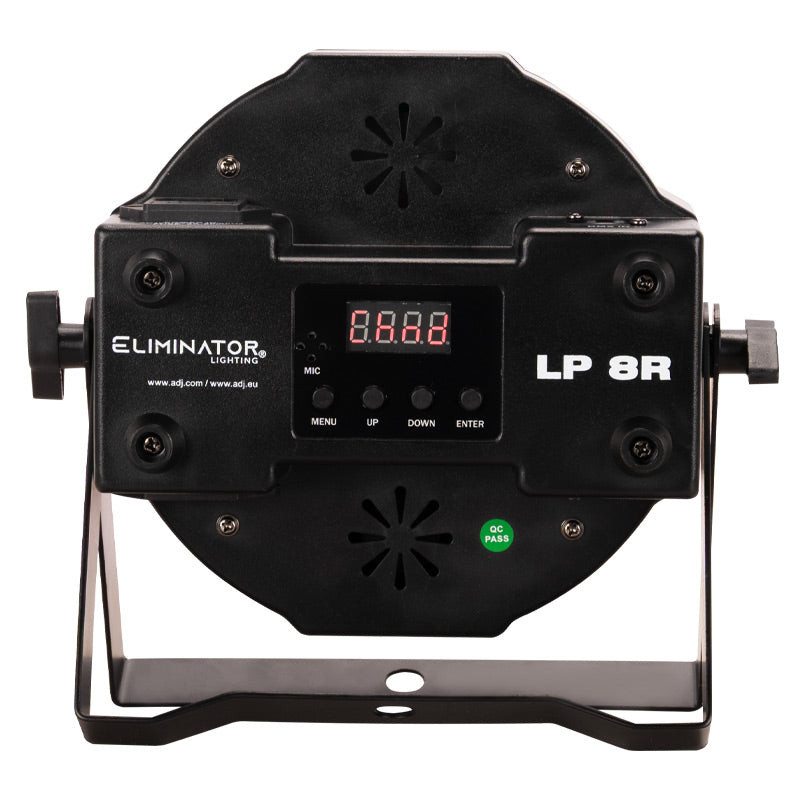

- 4-digit, 7-segment LED Display

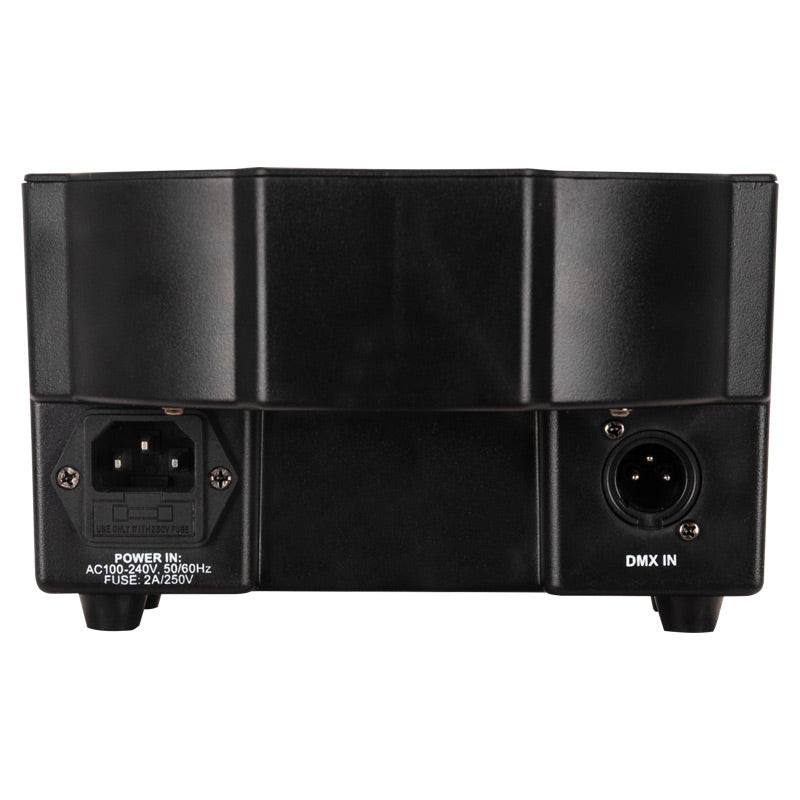

- 3-pin XLR DMX In/Out
- IEC Power In/Out
SIZE / WEIGHT:
- Length: 7.09" (180mm)
- Width: 5.12" (130mm)
- Height: 8.27" (210mm)
- Weight: 1.76 lbs. (0.8kg)
ELECTRICAL / THERMAL:
- AC 100-240V, 50/60Hz
- Max Power Consumption: 60W
- Temperature Control Protection
APPROVALS / RATINGS:
- IP20
