Product Description

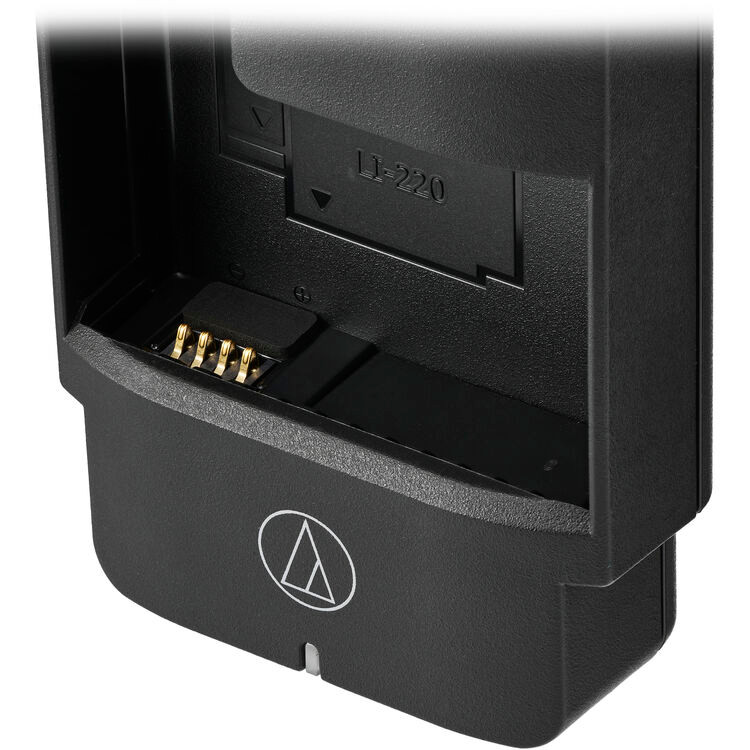

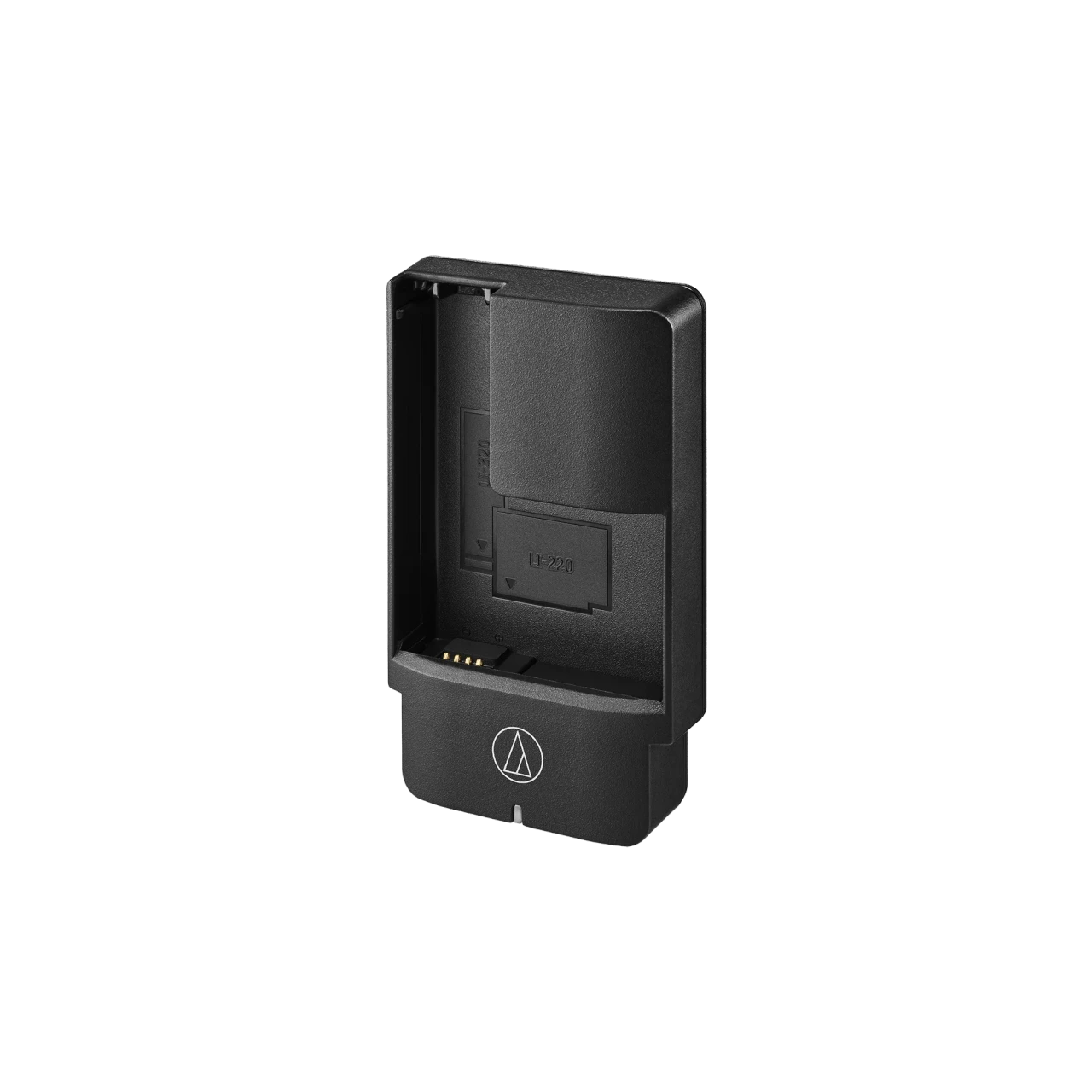

Audio-Technica ATW-CHGA6 Single/External Battery Charger
Overview
The ATW-CHGA6 battery charger is used to charge the lithium-ion batteries (LI-220 and LI-320) that power D50 wireless system transmitters. The charger can be inserted into an ATW-CHG6 charging station (sold separately) or be powered separately by a USB-C cable.
Features
- Charger for lithium-ion batteries (LI-220 and LI-320) used in D50 wireless system transmitters
- Charger can be inserted into the ATW-CHG6 charging station (sold separately) or be powered separately by a USB-C cable (not included)
Specifications
| Operating Frequencies | DF2: 470.125 to 607.875 MHz DF3: 470.125 to 693.875 MHz EF3: 580.000 to 693.875 MHz |
|---|---|
| Modulation Mode | Standard: 8-PSK HD mode: 16QAM |
| Occupied Bandwidth | Standard: 192 kHz HD mode: 96 kHz |
| Frequency Response | Standard: 20 to 20,000 Hz HD mode: 20 to 20,000 Hz Depending on attached microphone element. |
| Operating Range | 100 m (328′) Open range environment with no interfering signals. |
| Dynamic Range | ATW-DT3201 (Mic input): 120 dB, A-weighted, typical ATW-DT3201 (Inst. input): 109 dB, A-weighted, typical ATW-DT3202: 120 dB, A-weighted, typical ATW-DT3207: 120 dB, A-weighted, typical |
| Total Harmonic Distortion | 0.1% or less (at 1 kHz, -20 dBFS) |
| Maximum Simultaneous Use (recommended) | Standard: 17 channels / 6 MHz, 22 channels / 8 MHz HD mode: 47 channels / 6 MHz, 63 channels / 8 MHz Results may vary depending on the radio environment and usage conditions. |
| Delay | Standard: 2.1 ms typ. HD mode: 3.3 ms typ. |
| Audio Sampling Rate | Standard: 48 kHz HD mode: 48 kHz |
| Encryption System | AES256 |
| Notes | For product improvement, the product is subject to modification without notice. |
