Product Description

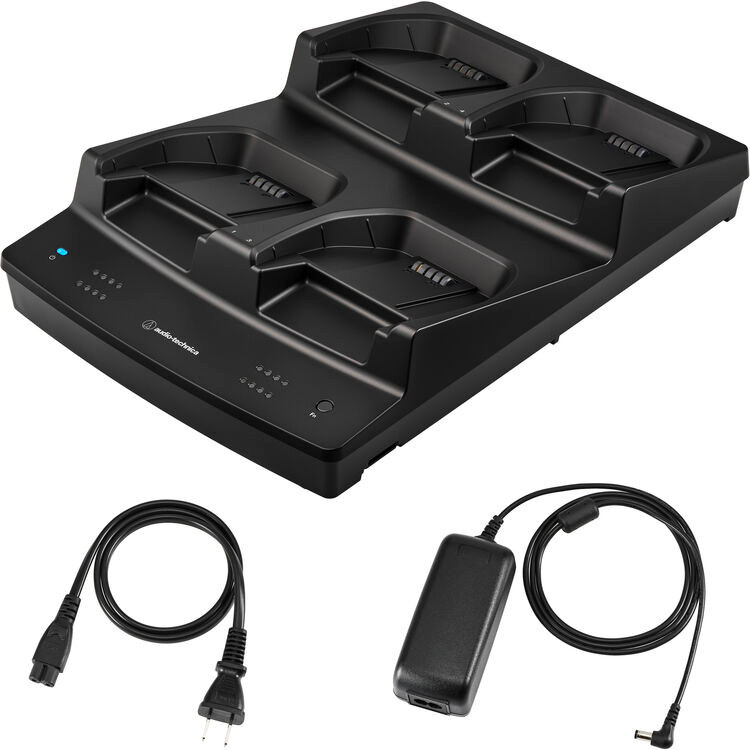

Audio-Technica ATW-CHG7AD D50 4B TX Charger with Power
Overview
The ATW-CHG7 four-bay charging station is used to charge D50 wireless system desk stand transmitters (ATW-DT3207). Two charging stations can be linked with Cat5e cable and powered by a single AC adapter. Charging status can be monitored via the station’s indicator lamps and in the Wireless Manager software. Transmitter firmware can be updated while transmitters are docked in the charging station.
Features
- Four-bay charging station for charging D50 wireless system desk stand transmitters
- Rapid recharge in as little as two hours
- Two ATW-CHG7 stations can be linked with Cat5e cable and powered by a single AC adapter (cannot be linked with ATW-CHG6 stations)
- Charging status and battery level can be monitored via the station’s LED indicators or in Audio-Technica’s Wireless Manager software
- Transmitter firmware can be updated while transmitters are docked in the charging station
Includes
- ATW-CHG7 charger
- mounting plate
- link cables to connect multiple chargers
- power supply
Specifications
| Operating Frequencies | DF2: 470.125 to 607.875 MHz DF3: 470.125 to 693.875 MHz EF3: 580.000 to 693.875 MHz |
|---|---|
| Modulation Mode | Standard: 8-PSK HD mode: 16QAM |
| Occupied Bandwidth | Standard: 192 kHz HD mode: 96 kHz |
| Frequency Response | Standard: 20 to 20,000 Hz HD mode: 20 to 20,000 Hz Depending on attached microphone element. |
| Operating Range | 100 m (328′) Open range environment with no interfering signals. |
| Dynamic Range | ATW-DT3201 (Mic input): 120 dB, A-weighted, typical ATW-DT3201 (Inst. input): 109 dB, A-weighted, typical ATW-DT3202: 120 dB, A-weighted, typical ATW-DT3207: 120 dB, A-weighted, typical |
| Total Harmonic Distortion | 0.1% or less (at 1 kHz, -20 dBFS) |
| Maximum Simultaneous Use (recommended) | Standard: 17 channels / 6 MHz, 22 channels / 8 MHz HD mode: 47 channels / 6 MHz, 63 channels / 8 MHz Results may vary depending on the radio environment and usage conditions. |
| Delay | Standard: 2.1 ms typ. HD mode: 3.3 ms typ. |
| Audio Sampling Rate | Standard: 48 kHz HD mode: 48 kHz |
| Encryption System | AES256 |
