Product Description

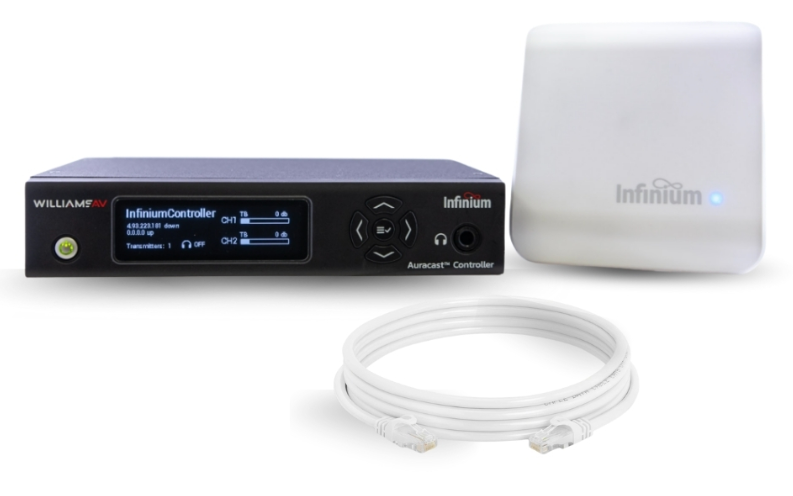

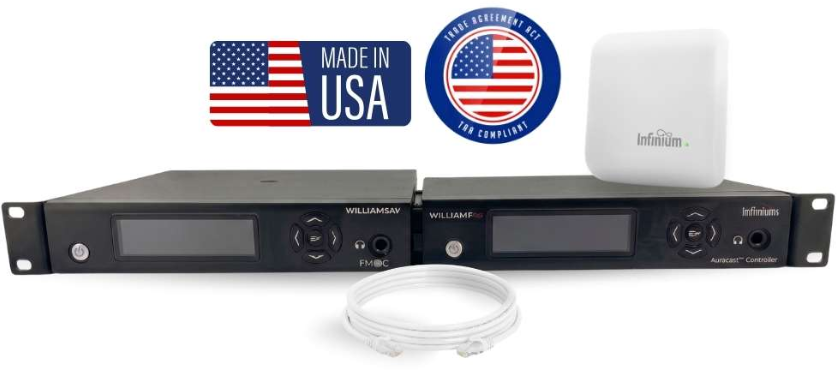

Williams Sound BA-SYS4-00 Infinium Flex Bundle | FM, Wi-Fi, & Auracast Broadcast Audio
Overview
The Infinium® Flex Bundle brings together two proven assistive listening solutions in one convenient package: the FM+ T55C D transmitter and the Infinium CT1 controller and transmitter. Together, they deliver FM, Wi-Fi, and Auracast™ broadcast audio, allowing venues to accommodate guests using venue-provided receivers, smartphones, hearing aids, cochlear implants, earbuds, headphones, and Auracast compatible receivers. Both systems include Dante® connectivity for seamless integration into modern AV environments.
Designed for venues that want to offer more listening choices, the Infinium Flex Bundle helps venues support a broad range of accessibility needs and listening preferences. Both the FM+ T55C D and Infinium CT1 are designed, engineered, and manufactured in the USA and are TAA compliant, making the bundle perfect for government, higher education, transportation, and other public-sector projects.
Specifications
| Dimensions | 8.45″ W x 8.25″ D x 1.72″H (21.5 cm x 21 cm x 4.4 cm) |
| Weight | 2.3 lbs (1.04 kg) |
| Color | Black |
| Installation Configurations | Rack Mount: Standard 19” Rack, one EIA rack space high, 1/2 space wide 1–2 units can be mounted in a single rack space with optional RPK 005 (single) or RPK 006 (double) Rack Mount Kits Shelf: Can sit on shelf, table, podium, etc. |
| Temperature Range – Operating | +32° F to +122° F (0° C to 50° C) |
| Temperature Range – Storage | -4° F to +158° F (-20° C to 70° C) |
| Power Supply | Desktop Style Transformer (TFP 062); Input: 100-240 VAC, 50/60 Hz. Output: 24 VDC, 750 mA, 18W. 2.5mm ID center positive barrel connector |
| Power Button | Push On/Push Off latching power button. |
| Ethernet Control Port | (1x) RJ-45 used for web UI, programming, and status display. Supports CAT 5e cable lengths up to 328 feet (100 meters); 10/100 Base-T |
| Front Panel Display | 3.12” High Resolution OLED Direct Entry UI with button entry programming and status indicator selections. |
| Dante | (1x) RJ-45 jack. |
| Power Supply | Desktop Style Transformer (TFP 062); Input: 100-240 VAC, 50/60 Hz. IEC Line Cord; Output: 24 VDC, 750 mA, 18W. 2.5mm ID center positive barrel connector |
| PoE Power Out | PoE |
| Compliance Approvals | FCC, RoHS3, WEEE, Industry Canada/ISED, CE, UKCA, RCM, CB Scheme |
| Warranty | 2-year parts and labor |

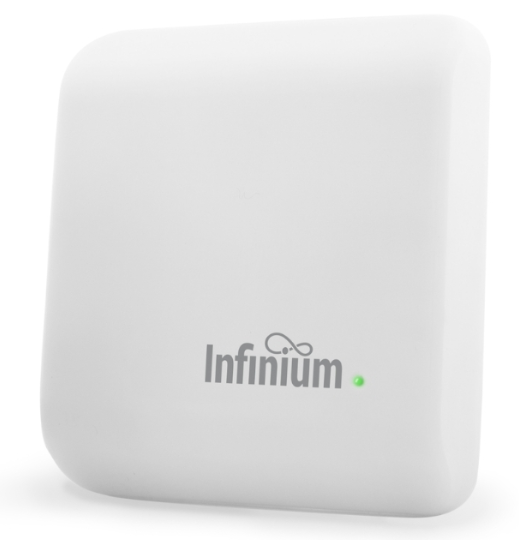

Infinium Transmitter (BA-T1)
| Dimensions | 4.7″ W x 5.0″ D x 1.19″H ( 119 mm x 127 mm x 30 mm) |
| Weight | 0.4 lbs (0.18 kg) |
| Color | White |
| Installation Configurations | Ceiling Mount, Wall Mount, Shelf |
| Temperature Range – Operating |
+32° F to +122° F (0° C to 50° C) |
| Temperature Range – Storage | -4° F to +158° F (-20° C to 70° C) |
| Power | PoE (Input) |
| Connection | RJ45 (1x) with audio, control and PoE |
| Power ON Indicator | Programmable LED |
| Transmitter Power Output | Programmable |
| Compliance Approvals | FCC, RoHS3, WEEE, Industry Canada/ISED, CE, UKCA, RCM, CB Scheme, Gitecki (Japan) |
| Warranty | 2-year parts and labor |
Cable
| Ethernet Cable | 10′ – CAT 5e Ethernet; 10/100 Base-T IEEE 802.3 compliant |
| Warranty | 90 Days |
