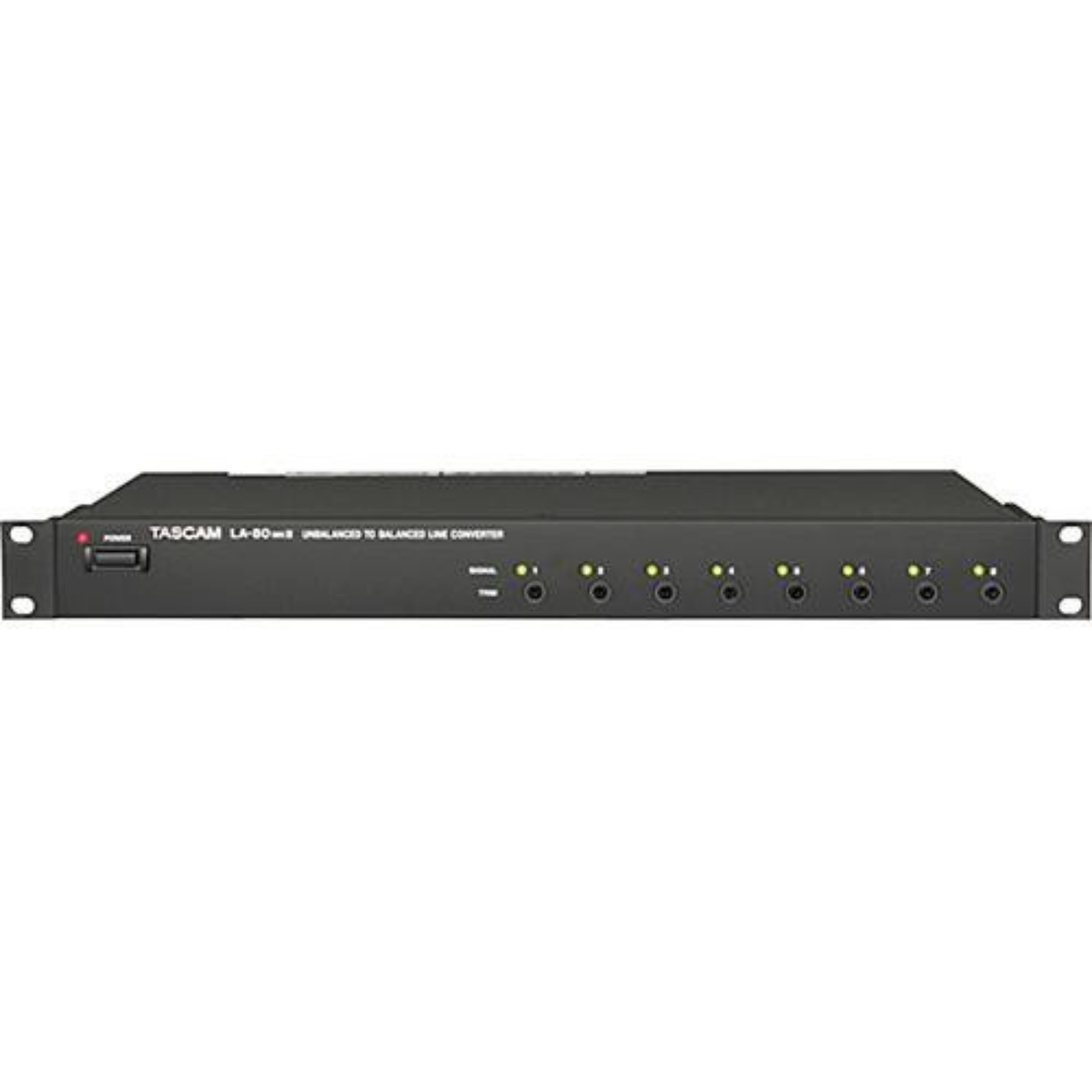

Tascam LA-80MKII 8-Channel Unbalanced-to-Balanced Audio Converter
Overview
The LA-80mkII from Tascam is a professional-quality 8-channel audio converter that converts unbalanced audio signals into balanced signals. It offers RCA inputs and XLR outputs for connection to a wide variety of consumer and professional audio devices.
The unit has ±12dB trim controls for precise matching of audio levels, and a ground-lift switch on each channel to reduce hum. A signal LED is available on each channel so you can quickly identify whether or not a channel is active.
Features
- Rackmount Design
- XLR and RCA Connectors
- Trim Control
- LED Indicators
- Ground-Lift Switches on Each Channel
Includes
- TASCAM LA-80mkII 8-Channel Unbalanced-to-Balanced Audio Converter
Specifications
| UNBALANCE TO BALANCE | |
| Input (unbalanced) | |
| Connectors | RCA pin jack x 8 |
| Input Impedance | 23kΩ (all INPUT LINK switches are OFF) 2.8kΩ (all INPUT LINK switches are ON) |
| Nominal input level | -10dBV +/-1dB |
| Maximum input level | +9dBV |
| Indocator delection level (unbacanced input) | -38dBV or more (OUTPUT LEVEL switch set to +4dB to -20dB) |
| Outputs(balanced) | |
| Connectors | XLR-3-32 equivalent x 8 (1:GND、2:HOT、3:COLD) |
| Output Impedance | 94Ω |
| Nominal load impedance | 10kΩ |
| Minimum load impedance | 600Ω |
| Nominal output level | +4dBu, +/-1dB (OUTPUT LEVEL switch set to+4dBu) -20dBu, +/-1dB (OUTPUT LEVELswitch set to -20dBu) |
| Maximum output level | +24dBu |
| TRIMrange | +/-12dB |
| Power | AC 100-240V, 50/60Hz |
| Power cunsumption | 6W |
| Weight | 3.0kg |
| Dimensions | 482.6 x 44.5 x 295 mm(W x H x D, including protrusions) |
