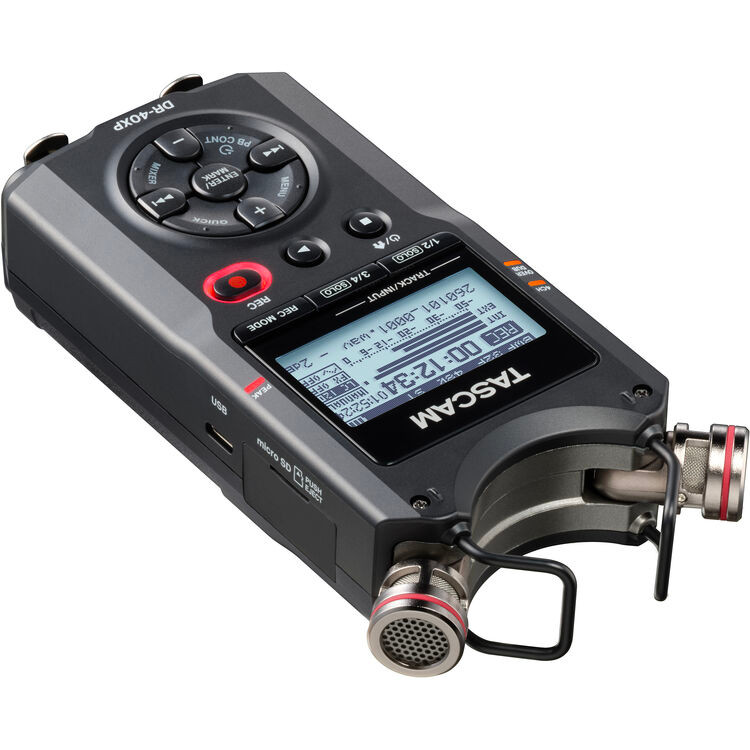

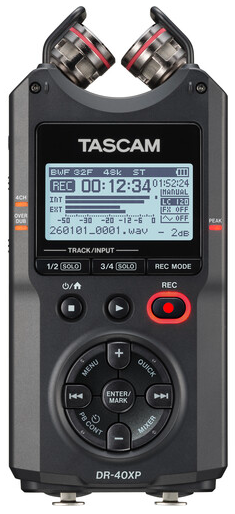

Tascam DR-40XP 4-Channel 32-Bit Float Portable Field Recorder
Overview
The Tascam DR-40XP is a versatile 4-channel multitrack portable field recorder designed for musicians, video creators, and field recordists. Featuring adjustable stereo microphones, ultra-low-noise HDDA mic preamps, XLR/TRS inputs with phantom power, and 32-bit float / 96 kHz recording, it delivers clean, clip-free audio in any environment. Long battery life and USB-C audio interface functionality make it a reliable solution for both recording and production workflows.
From Performance to Production, Anywhere
Capture everything from acoustic instruments and vocals to full band performances, rehearsals, lessons, and live events, with professional-level sound quality. The DR-40XP combines four-channel recording with overdub and overwrite functions, reverb effects, and a built-in chromatic tuner for flexible production. With USB-C connectivity, it can function as a 2-in / 2-out audio interface, allowing direct integration with iPhone or computer-based DAWs for immediate recording and composition.
Professional Audio for Your Video
Designed for video creators, vloggers, and content producers, the DR-40XP features adjustable stereo condenser microphones that switch between X-Y mode for focused capture and A-B mode for immersive ambience. XLR/TRS inputs support external microphones, including shotgun mics, while improved clock accuracy (±10 ppm), slate tone generation, and a 3.5mm stereo line output help maintain tight audio-video synchronization in production environments.
Built for Field Recording Wherever Sound Takes You
Compact and portable, the DR-40XP delivers up to 18 hours of operation using three AA batteries. Its built-in microphones handle up to 125 dB SPL, making it suitable for everything from quiet environmental recordings to loud live sources such as vehicles and aircraft. With 32-bit float / 96 kHz recording and dual XLR/TRS inputs with +48V phantom power, it supports flexible, professional field recording setups in any location.
Pristine Audio, Every Take
Equipped with TASCAM HDDA microphone preamps and an EIN of -126 dBu, the DR-40XP provides exceptionally clean, low-noise performance across both built-in and external inputs.
Worry-Free Recording Formats
The 32-bit float recording ensures distortion-free results without requiring precise input level adjustments. The recorder supports multiple formats, including 32-bit float, 24-bit, and 16-bit WAV at 96, 48, or 44.1 kHz, as well as MP3 for extended recording times.
Adjustable Stereo Condenser Microphones
RF-resistant unidirectional microphones support both A-B and X-Y configurations for accurate stereo imaging across a wide range of applications-from instruments and vocals to environmental sound and interviews.
Flexible External Inputs

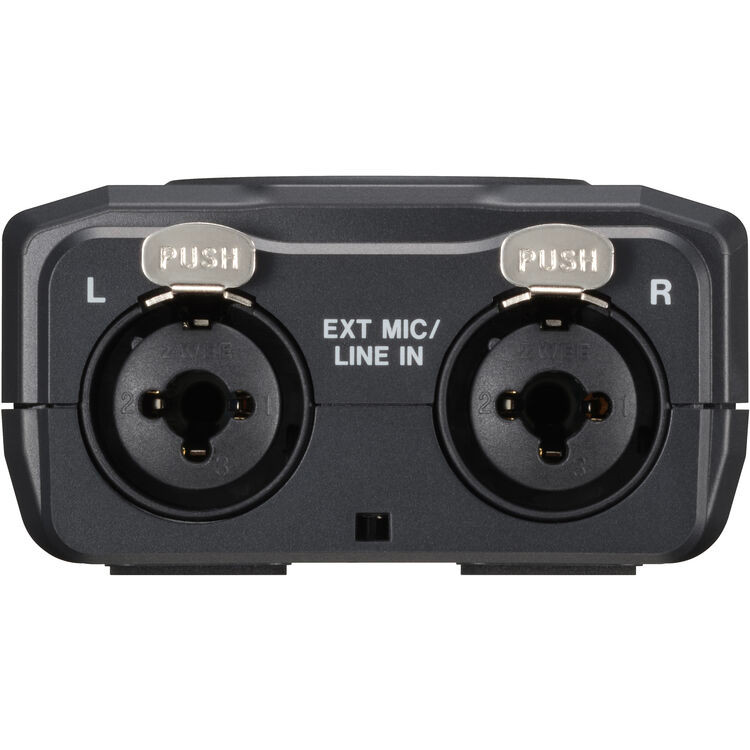

Dual XLR/TRS combo inputs support mic- and line-level signals up to +24 dBu, with +48V phantom power for professional microphones.
Record Live Performances with Natural Ambience
Blend a stereo feed from a live console with onboard microphones using 4-channel recording to capture both clarity and room ambience.
Long Battery Life
Up to 18 hours of operation (2-channel recording with built-in microphones and alkaline batteries) keeps you recording longer without interruption.
Your Portable Recording Studio
Use the DR-40XP as a USB-C audio interface with 2-in / 2-out functionality for direct recording into your DAW on iPhone or computer.
Large Recording Capacity
Supports microSDXC cards up to 512GB, providing ample storage for extended recording sessions.
Expanded Control and Utility

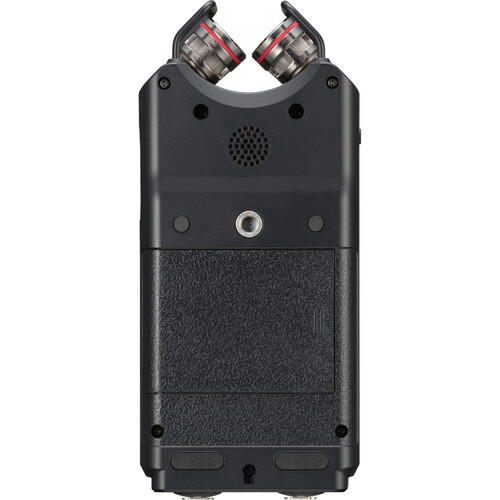

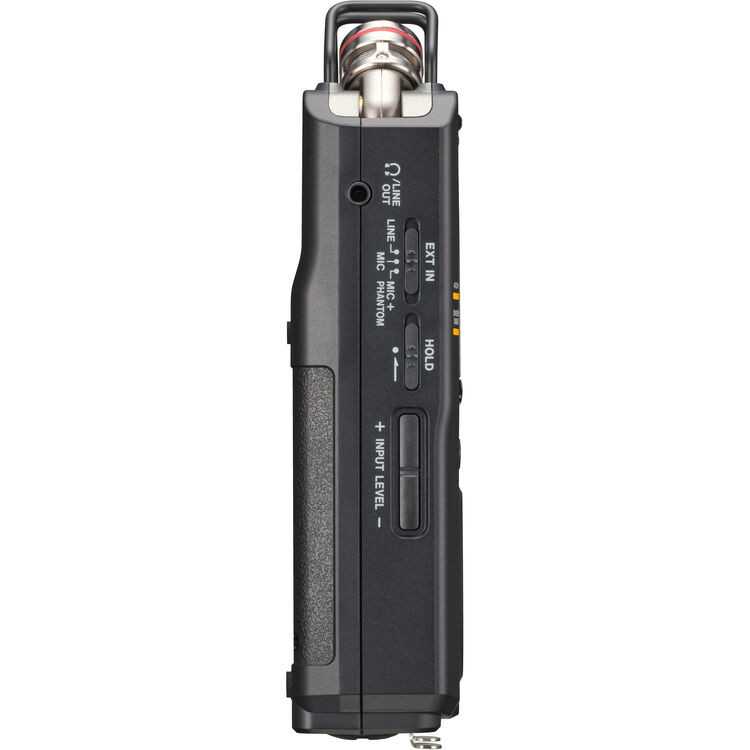

Includes auto recording, pre-rec, limiter / peak reduction, four-stage low-cut filters, input delay, overdubbing, playback control, and speed adjustment (0.5x to 2.0x). A built-in speaker, headphone output, tripod mount, and backlit LCD ensure usability in a wide range of environments.
Features
- Audio for Video, Music, Production
- Adjustable A-B and X-Y Microphones
- 32-Bit Float Clip-Free Recording
- Two XLR/TRS Inputs with Phantom Power
- HDDA Preamps with Ultra-Low Noise
- 2-In / 2-Out USB-C Audio Interface
- Handles up to 125 dB SPL
- Supports up to 512GB microSDXC
- Built-In Tuner and Effects
- Up to 18 Hours on 3 AA Batteries
Specifications
| Form Factor | |
| Primary Use Applications | |
| Number of Input Channels | |
| Number of Microphone Inputs | |
| Number of Tracks | |
| Maximum Sampling Rate | |
| Display | |
| Built-In Speaker | |
| Special Features |
Microphone
| Microphone | |
| Mic Configuration | |
| Polar Pattern | |
| Maximum SPL |
Recording
| Audio File Formats | |
| Sample Rates | |
| Bit Depth | |
| Audio Interface Capability | |
| Signal Processing & FX | |
| Media/Memory Card Slot | |
| Internal Storage |
Connectivity
| Analog Audio I/O | |
| Bias/Plug-In & Phantom Power | |
| Digital Audio I/O | |
| Sync I/O | |
| USB | |
| Wireless | |
| Mobile App Compatible |
Performance
| Frequency Response | |
| Maximum Input Level | |
| Headphone Output Power | |
| SNR/Noise | |
| THD/Distortion | |
| Dynamic Range |
Power
| Power Options | |
| Battery Type | |
| Battery Runtime | |
| AC/DC Power Adapter |
Physical
| Mounting Options | |
| Operating Conditions | |
| Dimensions | |
| Weight |
