Product Description

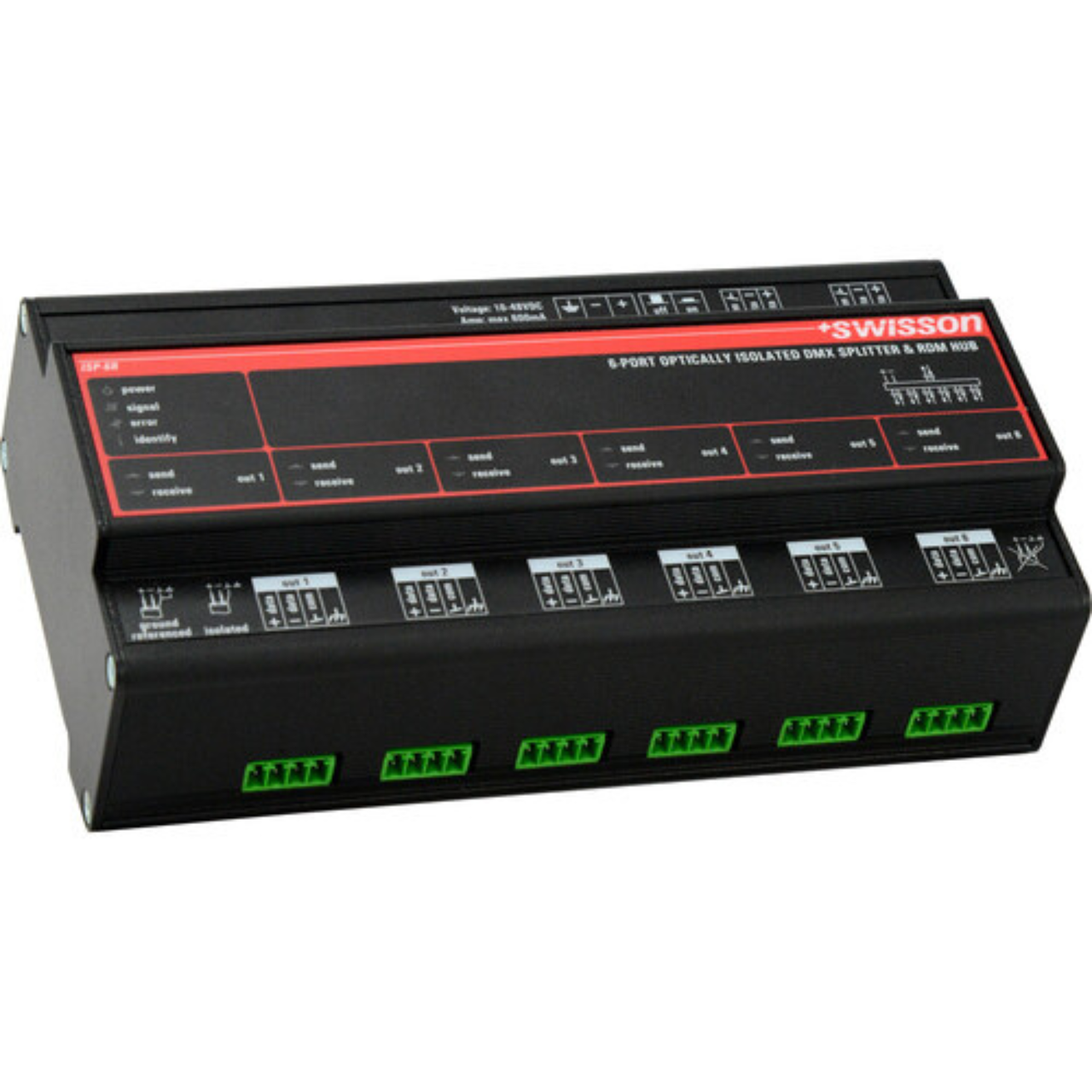

Swisson ISP-6R-RJ45 DIN Rail DMX/RDM Splitter & Booster (RJ45, 6-Output)
Overview
Designed as a DMX splitter and RDM hub for DIN rail installations, this RJ45 6-output ISP DIN Rail DMX/RDM Splitter & Booster from SWISSON is a reliable DMX splitter with RDM support that works as a DMX splitter, booster, and repeater. The ISP also acts as a repeater device for transporting DMX signals across larger distances, while clearing signal disturbances. The DMX input is fully isolated and has built-in termination. Equipped with individual optically isolated ports, the ISP splitter helps prevent harmful voltages from damaging equipment. The ISP DIN Rail version works within DMX and RDM environments. This is the 6W model with RJ45 connectors, DIN rail mountable design, and an alternative pinout.
RJ45 Connectors
This RJ45 version is configured as an "isolated" transmitter: each output port is individually optically isolated, meaning complete isolation from the other output ports and from the input section.
Features
- 6 x RJ45 DMX Outputs
- Alternative Pinout Version
- DMX Splitter, Booster & Repeater
- RDM Support
- Optical Isolation (Individual per Port)
- Built-In Termination
- Rugged Metal Housing
- 6W Power Consumption
- AC Power
Specifications
General
| Inputs/Outputs | |
| Channels | |
| Dimming | |
| Cooling System |
Power
| Power Source | |
| Power Consumption | |
| Input Power |
Compatibility
| Protocol |
Physical
| Operating Conditions | |
| Environmental Resistance | |
| Dimensions | |
| Weight |
