Product Description

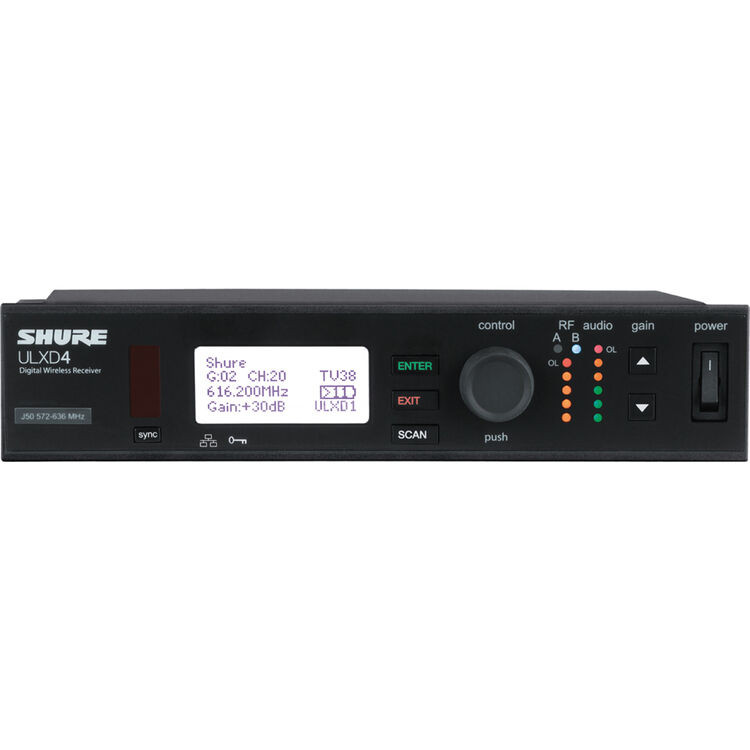

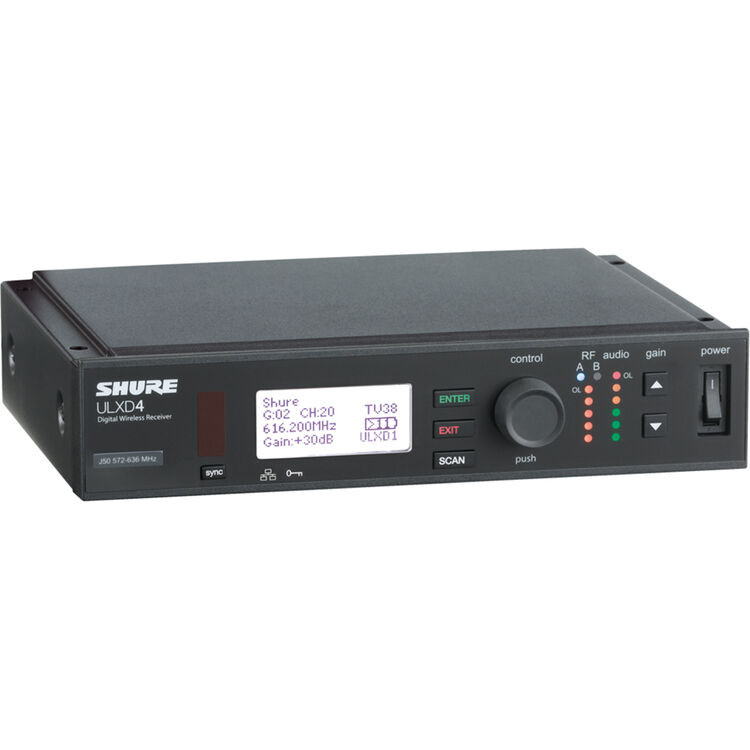

Shure ULXD4GV=-G50 Single-Channel Digital Wireless Receiver with Always-On Encryption (G50: 470 to 534 MHz)

Overview

Part of the ULX-D wireless series, the Shure ULXD4-GV houses a single digital receiver in a rugged half-rack unit with an external power supply. This GV version of the receiver features always-on AES-256 encryption and is designed for government and high-level executive applications where sensitive audio information may be transmitted.

The ULX-D Series simplifies the set up and management of large numbers of wireless systems. It is ideal for professional sound reinforcement applications in large live venues and houses of worship as well as A/V installations in conference, educational, and corporate facilities. Compatible with a wide selection of Shure transmitters and mic capsules, it delivers pristine 24-bit/48 kHz digital audio, capturing every detail with clarity, accurate low end, and crisp transient response.

The ULX-D operates in the UHF band, utilizing Digital Predictive Switching Diversity to protect the transmission from interference, delivering rock-solid RF signal stability without audio artifacts. In Standard mode, you can run up to 17 channels per 6 MHz TV channel, at a range up to 330'. Alternatively, the High-Density mode lets you run up to 47 channels per 6 MHz TV channel, at a maximum range of 98'. The system offers AES-256 encryption for security.

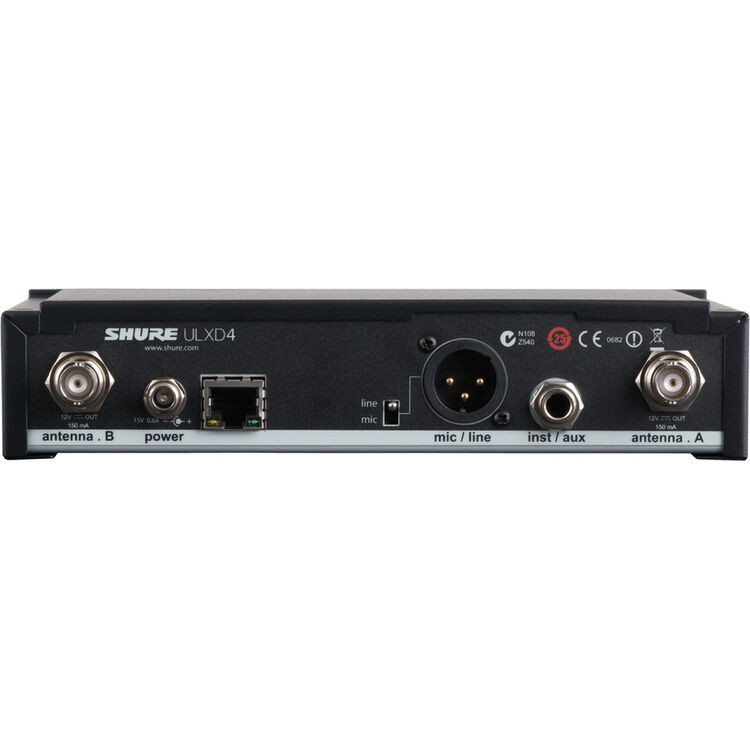

The unit features audio and RF meters, 60 dB of gain control, and both XLR and 1/4" outputs. A large LCD screen and intuitive controls let you quickly make adjustments, even in low-light situations. Additional features include automatic frequency scanning, IR sync, gain optimization to match any input source, and internal limiting to prevent clipping.

The Ethernet port allows multiple receivers to be easily networked together for simplified frequency coordination and deployment via Shure's Wireless Workbench software. In addition, the Channels Mobile App enables you to control the system remotely from an iOS device.

Features

• Secure Always-On AES-256 Encryption
• For Sensitive Government & Business Work
• 1 x Digital Audio Channel, 1/2 Rackspace
• 64 MHz Tuning Range
• Expandable up to 60 Channels
• 1 x Ethernet Port

Includes

• Shure ULXD4-GV Single-Channel Digital Wireless Receiver with Always-On Encryption (G50: 470 to 534 MHz)
• Hardware Mounting Kit
• Short Rackmount Bracket with Link Bar
• Long Rackmount Bracket
• 2 x Antennas
• 2 x BNC Antenna Adapters
• 2 x BNC Antenna Cables (22")
• Ethernet Cable (3')
• Shure PS43US 15-VDC Power Supply for Shure Wireless Receivers

Specifications
