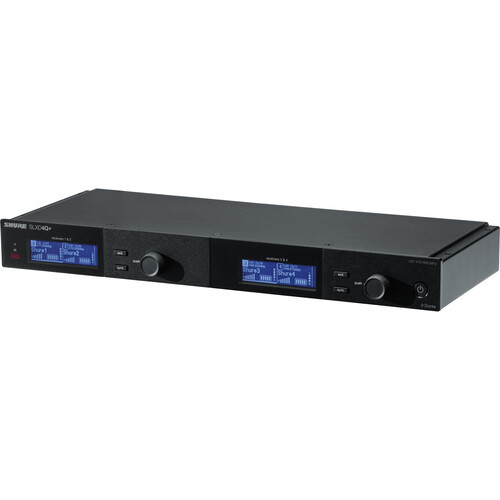

The Shure SLXD4QDAN+ is a professional quad-channel digital wireless receiver with integrated Dante audio networking, designed for live sound, installed audio, broadcast, and house of worship applications. Built on the SLX-D+ platform, it delivers transparent digital audio, expanded wideband RF performance, and advanced hands-free wireless management in a space-efficient full-rack format. By combining four receiver channels and networked audio connectivity in a single rack space, the SLXD4QDAN+ simplifies system deployment while reducing cabling and accessory requirements.

Transparent Digital Audio and Wideband RF Performance

The SLXD4QDAN+ delivers clear, accurate 24-bit digital audio with greater than 118 dB of dynamic range across all four receiver channels. A wide tuning range of up to 138 MHz (regionally dependent) provides broad geographical coverage and simplified frequency coordination. The receiver supports up to 11 simultaneous systems per 6 MHz TV band and up to 14 systems per 8 MHz TV band, making it well suited for scalable, high-density wireless environments.

ShowLink Ease Automated Wireless Management

Integrated ShowLink Ease technology enables two-way communication between the SLXD4QDAN+ receiver and compatible SLX-D+ transmitters. Once linked, transmitters automatically stay synchronized with the receiver across power cycles and RF changes. Engineers can remotely change transmitter frequency, adjust gain, lock or unlock controls, automatically deploy new clean frequencies when interference is detected, and perform over-the-air firmware updates-without physically accessing the transmitters.

Dante Audio Networking Integration

The SLXD4QDAN+ features built-in Dante audio networking, allowing all four receiver channels to be routed digitally over a single Ethernet cable. Dante connectivity enables seamless integration with networked audio systems for routing, recording, monitoring, and distribution, reducing analog cabling and simplifying installation in modern AV, broadcast, and installed sound environments.

Wireless Workbench Desktop and Mobile Control

The SLXD4QDAN+ integrates seamlessly with Shure Wireless Workbench desktop software and the Wireless Workbench Mobile app. Users can monitor RF performance, configure receiver and transmitter parameters, manage ShowLink Ease functions, and perform interference monitoring over Wi-Fi or Bluetooth. Network connectivity supports efficient system expansion and centralized control in larger installations.

Integrated Digital Feedback Reduction

Patented Shure Digital Feedback Reduction (DFR) software is embedded directly into the SLXD4QDAN+ receiver. DFR automatically detects and suppresses feedback using dynamic notch filtering, improving clarity and system stability across all four channels in live sound environments where acoustics and microphone placement may be unpredictable.

Multiple Transmitter Options

The SLXD4QDAN+ is compatible with the full range of SLX-D+ transmitters. The SLXD1+ bodypack transmitter features a lightweight ABS housing with a TA4M input for lavalier microphones, headset microphones, and instrument cables. The SLXD2+ handheld transmitter offers a durable aluminum housing with interchangeable capsule options including SM58, Beta 58A, Beta 87A, KSM8, Nexadyne 8/C, and Nexadyne 8/S. The SLXD3+ plug-on transmitter supports any XLR microphone and provides phantom power for condenser mics.

Quad-Channel Audio Summing, RF Cascade, and Secure Design

The SLXD4QDAN+ supports audio summing, allowing the quad-channel receiver to function as a compact four-channel mixer for streamlined output routing when required. RF Cascade functionality allows up to three SLXD4Q-series receivers to be linked together to create a 12-channel system without additional accessories. Each SLX-D+ receiver ships with AES-256 encryption enabled for secure wireless transmission. The SLXD4QDAN+ features a rugged metal full-rack chassis designed for reliable operation in touring, installed, and broadcast environments, providing a powerful and scalable foundation for professional networked wireless audio systems.

Features

Quad-Channel Full-Rack Receiver
Integrated Dante Audio Networking
Transparent 24-Bit Digital Audio
Wide 138 MHz Tuning Range
ShowLink Ease Remote Transmitter Control
Automatic Frequency Management
Digital Feedback Reduction (DFR)
AES-256 Encrypted Wireless Audio
Wireless Workbench & Mobile App Control
Up to 11 Systems per 6 MHz TV Band

Includes

Shure SLXD4QDAN+ Quad-Channel Digital Wireless Rackmount Receiver with Dante (G57: 470 to 608 MHz)
Rackmount Kit
2 x 1/4-Wave Antenna
2 x BNC Cable

Specifications

System

Wireless Technology	Digital UHF
Diversity	Yes
RF Frequency Band	470 to 608 MHz
Number of RF Channel Frequencies	5520
Max Operating Range	328.1' / 100 m
Max Transmitters per Band	14
Dynamic Range	118 dB
Latency	2.8 ms
Encryption	AES 256
Built-In Recorder	No
Timecode Support	No
Mobile App Compatible	Yes: Android & iOS

Receiver

Receiver Type	1x Tabletop/Rack-Mountable
Mounting Options	Rackmount (with Included Hardware, 1 U)
Antenna	2x Removable 1/4 Wave
Number of Audio Channels	4

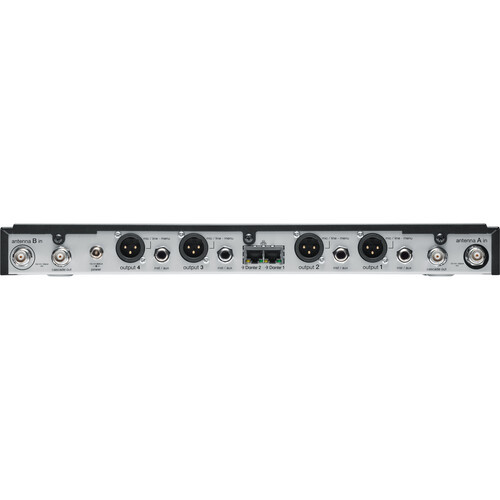

Audio I/O	4x XLR 3-Pin Balanced Mic/Line Output 4x 1/4" TS Unbalanced Output
Slot-Mount I/O Adapters	No
Network I/O	2x RJ45 (Dante)
USB/Lightning Connectivity	No
Gain Range	-18 to +42 dB
Frequency Response	20 Hz to 20 kHz +1/-2 dB
Display	Backlit LCD
Power Requirements	AC Input

Transmitters

Included Transmitters

No Transmitters Included

Microphones

Microphone Type

No Microphone Included

Power

Included Charging Case

Charging Case

AC/DC Power Adapter

15 VDC (Included)

Physical

Environmental Resistance	No
Housing	Steel (Receiver)
Dimensions	15.5 x 6 x 1.7" / 393 x 152 x 42 mm
Weight	3.9 lb / 1750 g (without Antennas)
