Product Description
Shure MXA902W-S-60CM-USB Audio Conferencing Kit (60cm, White)
Overview
Total Audioconferencing Solution, Pre-Configured Out of the Box
This Shure MXA902 + ANIUSB-MATRIX Audio Conferencing Kit combines an MXA902 ceiling array mic/loudspeaker (60cm, white) with an ANIUSB-MATRIX USB audio network interface, brackets, and cabling—all in one package. Pre-configured and pre-routed out of the box, the kit is ready-to-go for reliable, high-quality networked audio coverage in small- to medium-sized meeting spaces, with no Shure certification required.
Compatible with leading, third-party collaboration platforms, and following enterprise-ready network protocol best practices, the kit offers a total audio solution that is easy and fast to deploy, creating an effortless end-user experience.
MXA902 Microflex Advance Ceiling Array Microphone & Loudspeaker (60cm, White)
The 60cm, square, white MXA902 combines a microphone array and loudspeaker in one elegant solution-ready for ceiling installation in boardrooms, meeting spaces, and similar environments. The mic and speaker are designed to cover a 20 x 20' area right out of the box, and the unit requires only a single network connecting cable for power, control data, and encrypted audio.
How It Works
- The MXA902 is an advanced array microphone, wide-dispersion loudspeaker, and powerful signal processor combined into one unit for premium sound.
- Single-Zone Automatic Coverage technology captures every talker in a 20 x 20' area while avoiding conversations and noises from other areas.
- An integrated 2.5-inch wide-dispersion, high-output loudspeaker is optimized for voice reproduction to ensure effortless collaboration.
- Onboard IntelliMix DSP applies automatic mixing, echo cancellation, noise reduction, and automatic gain control for a pristine audio mix.
- An integrated ceiling device reduces clutter on tables and walls for a cleaner interior design.
- Next-generation array architecture delivers enhanced low-frequency directionality and the most natural speech quality.
- Unlike wall-mounted soundbar devices, a ceiling-mounted array mic and loudspeaker provide more consistent sound quality for every participant.
- Fits European-standard 60cm ceiling tiles.
- Additional options for ceiling, pole, or wire rope suspension mounting are available separately
Quality Details
- Certified for use with Microsoft Teams and Zoom, and compatible with popular collaboration tools.
- Square form factor features a paintable white finish to meet the architectural needs of today’s meeting spaces.
- Audio, PoE+ power, and control signals connect via Dante/AES67 digital audio networking over a single cable.
- Shure Audio Encryption keeps meeting content secure between the MXA902 and other Microflex Ecosystem devices in the room.
- The LED status bar features configurable colors and brightness.
- Command strings enable seamless integration with third-party room control systems.

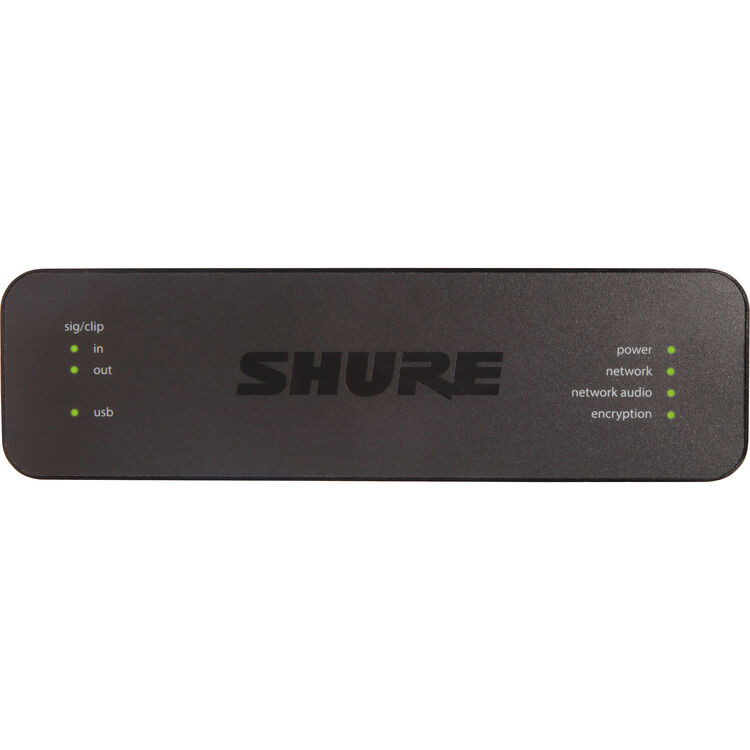

ANIUSB-MATRIX USB Audio Network Interface
The ANIUSB-MATRIX USB Audio Network Interface is designed for audio/video conferencing installations in small- and medium-size meeting rooms. It can be used to connect 4 Microflex Advanced or Microflex Wireless microphone channels via Dante (4 in/2 out), and provide analog connectivity to a room audio/video conferencing system or a PC-based A/V conferencing application via USB (1 in/out).
An internal matrix mixer offers flexible routing, allowing users to route any input to any output. A 4-band parametric EQ filter is also available on the analog and USB outputs. The ANIUSB-MATRIX is compact and easy to mount without an equipment rack.
At a Glance
- Connects 4 Dante audio inputs and 1 analog input to an A/V conferencing system or a PC-based videoconferencing application
- Flexible signal routing and connectivity: analog audio (1 block in/1 block out) to room A/V conferencing system; USB (1 in/out) to connect to laptop or room PC
- Power over Ethernet (PoE) eliminates the need for an outboard power supply
- Compact form factor is easy to mount without equipment rack
Features
- Conferencing & Meetings in 20x20' Room
- MXA902 Mic/Loudspeaker (60cm, White)
- ANIUSB-MATRIX Interface
- Fits Standard 60cm Euro Ceiling Tiles
- No Shure Certification Required
- IntelliMix DSP for Clear, Natural Speech
- Supports Dante and AES67
- Flexible Signal Routing and Connectivity
- 1 Cable for Power (PoE+), Audio & Data
- Compact Form Fact, Easy to Mount
Includes
- Shure MXA902 + ANIUSB-MATRIX Audio Conferencing Kit (60cm, White)
- 8 x Cable Tie
- 3 x Strain-Relief Tab
- Rubber Pad Set
Specifications
General
| Compatibility |
Inputs/Outputs
| Audio I/O |
Power
| Power Source | |
| Power Consumption |
Physical
| Color | |
| Certifications | |
| Operating Conditions | |
| Storage Conditions | |
| Dimensions | |
| Weight |
