Product Description

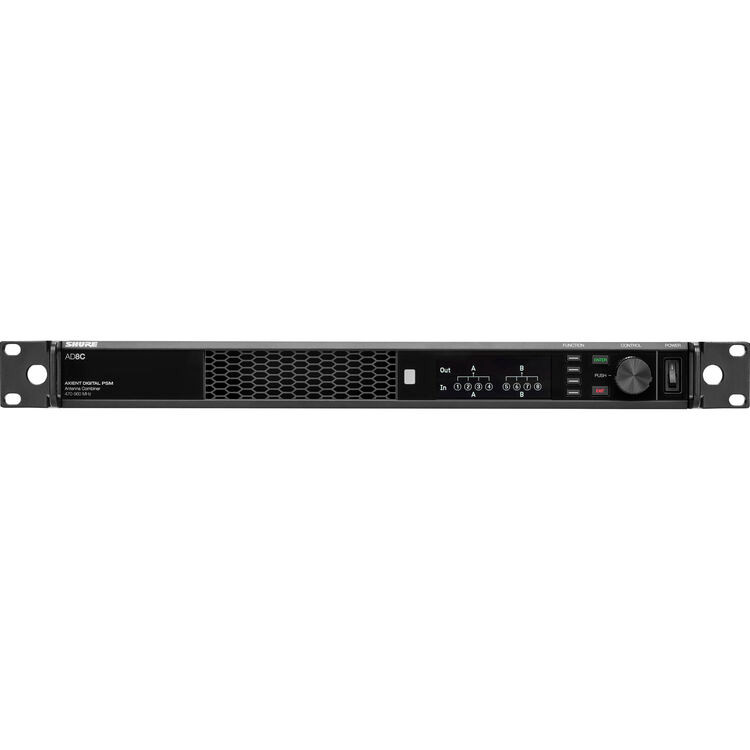

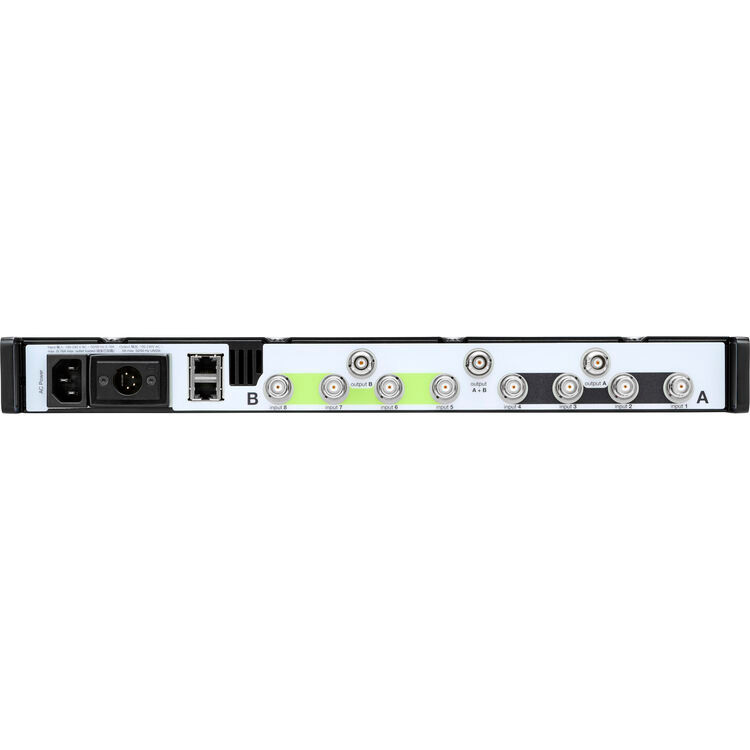

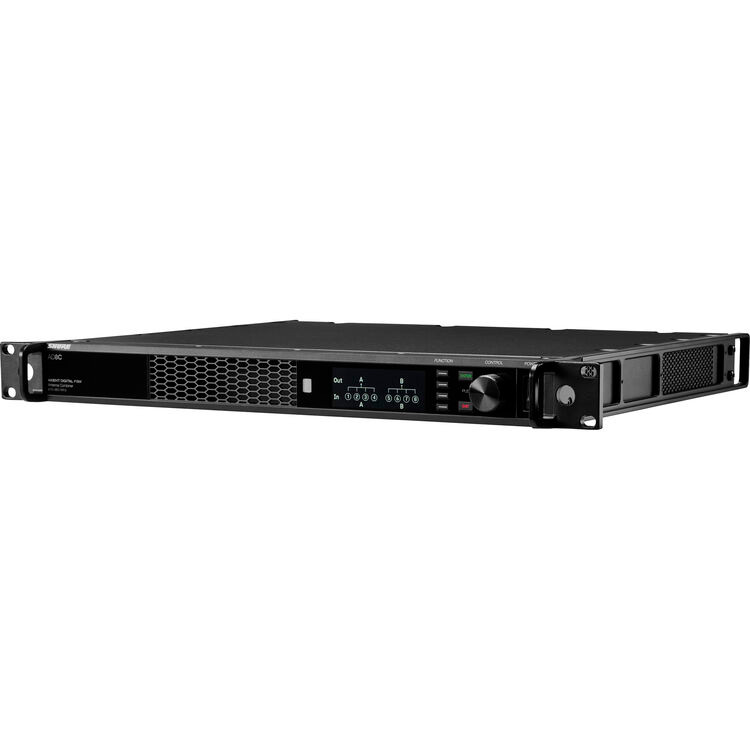

Shure AD8CDC Axient Digital PSM 8-Port Combiner with DC Powering (470 to 960 MHz)

Overview

Streamline your Axient PSM transmit antenna setup with the AD8C Axient Digital PSM 8-Port Combiner from Shure. The unit combines the RF outputs from up to 8 different ADTQ or ADTD Axient PSM transmitters into a single output to feed a single transmit antenna, helping to eliminate intermodulation noise when multiple antennas are deployed in the same space. Alternatively, the AD8C can combine the output of up to 4 Axient PSM transmitters to feed two antennas; this supports Spatial Diversity for improved reception and greater coverage area. The combiner enables Automatic Transmitter Compensation with the ADTQ or ADTD Axient Digital PSM transmitters, which helps defend against passive signal loss. This version of the combiner features a DC input for power redundancy.

Features

• For Use with ADTQ and ADTD Transmitters
• Passive Antenna Combiner
• Combines RF Outputs for Antenna Use
• 8 Receivers on Single Antenna
• 4 Receivers on Dual Antennas
• Supports Spatial Diversity
• 8:1 Mode for up to 32 WMAS Channels
• 2x 4:1 Mode for up to 16 WMAS Channels
• DC Powering for Redundancy

Includes

• Shure AD8C Axient Digital PSM 8-Port Combiner with DC Powering (470 to 960 MHz)
• 8 x BNC Cable
• Ethernet Cable
• Ethernet Jumper Cable
• Rackmount Kit
