Product Description
Pathway Connectivity PWSNAP SM HLK ENC32 R24 MVOLT NOVB Snap+ Relay Panel with 24 Relays
Overview
The SNAP+ panel family delivers robust capabilities in a combined package. Perfect hub of control for small theaters or architectural applications. The SNAP+ panels brings a self contained system of Relays, 0-10V outputs, sACN input, contact closure inputs, and a Pathport for DMX512 in or out. Offering a full range of panel sizes, the SNAP+ Relay Panel is ideal for spaces that require full circuit control, with the optional flexibility of configuring single pole relays into a two or three-pole relays in the field. SNAP+ is UL924 listed for emergency power loads and egress lighting.
Features
- Ethernet port to allow sACN control of relays and 0-10V outputs
- All relays include local manual override lever
- All relays are individually addressable
- One 0-10V dimming output per relay individually addressable.
- Removable back plate for ease of installation
- UL 924 panel listed for emergency bypass
- Optional field installed voltage barrier(s) for normal/emergency use, or mixed voltage use
- Pathport for DMX512, configurable to be an Input or Output

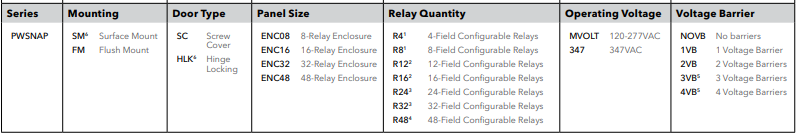

Ordering Information

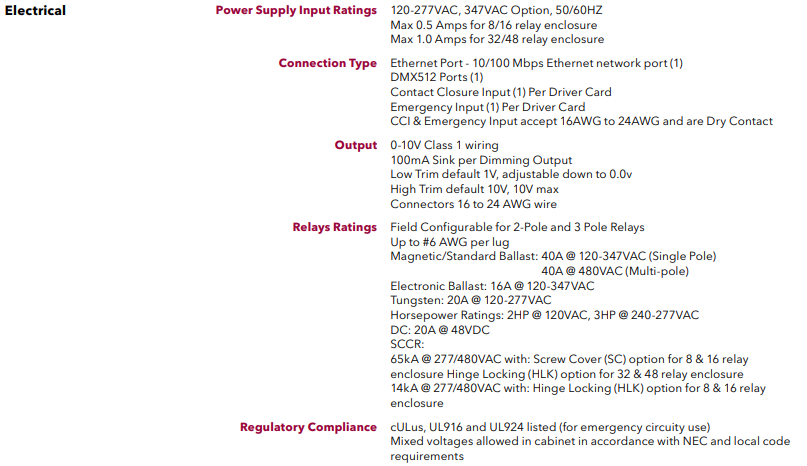

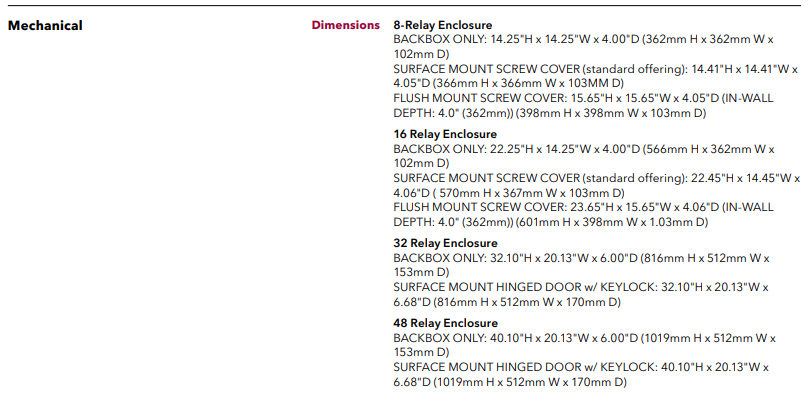

Specifications
