Product Description
Pathway Connectivity PWEMDMX RM MVOLT CCI DMeXit Emergency Controller
Overview
The Pathway DMeXit is a UL924 compliant controller designed to send a control signal to DMX lighting in emergencies to satisfy minimum luminance levels for egress lighting. DMeXit uses a wet or dry contact closure from other building management system, or the optonal integrated phase loss detection device. User Recordable snapshot of a single universe DMX will be transmitted to four separate data runs. The outputs are optically isolated to ensure maximum reliability and during normal operation are fully RDM compliant so that your entertainment console or architectural controller still has maximum flexibility when it comes to commissioning and monitoring your system during normal operation. There are multiple options for restoring normal operation after conditions have been cleared, including user programmable time delays, sensing of valid input signal from the normal controller or a remote restore button for facilities or stage managers.
Features
- UL924 Compliant DMX512 Controller
- One universe of DMX input and four optically isolated four outputs
- RDM compliant splitter on all outputs
- Factory Default Snapshot sets all levels at full
- ½" and ¾" conduit knockouts for all mounting options to all three electrical sections
- Easy wire management through use of built in lances
- Wet or Dry contact closure input for emergency mode
- Optional 2-wire Remote Restore button with bi-color LED showing normal and emergency modes
Ordering Information

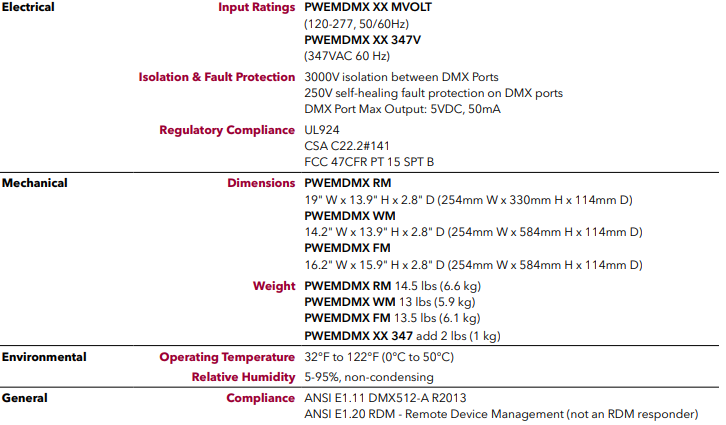

Specifications
