Product Description
Pathway Connectivity PWEMDMX FM 347 CCI DMeXit Emergency Controller, Flush Mount, 347V
Overview
The Pathway DMeXit is a UL924 compliant controller designed to send a control signal to DMX lighting in emergencies to satisfy minimum luminance levels for egress lighting. Using a wet or dry contact closure from other building management system, or the optional integrated phase loss detection device. User Recordable snapshot of a single universe DMX will be transmitted to four separate data runs. DMeXit has been recognized as a 2024 BrightStar Awards Honoree by LEDs Magazine.
Features
- UL924 Compliant DMX512 Controller
- One universe of DMX input and four optically isolated four outputs
- RDM compliant splitter on all outputs
- Factory Default Snapshot sets all levels at full
- May be triggered by external contact closure, integrated phase loss detection or on loss of DMX Input signal
- Programmable Restore operations
- Three mounting options
- Optional Phase Loss Detection - 1, 2 or 3 phase 120-277VAC with optional 347VAC single phase detection.
Ordering Information

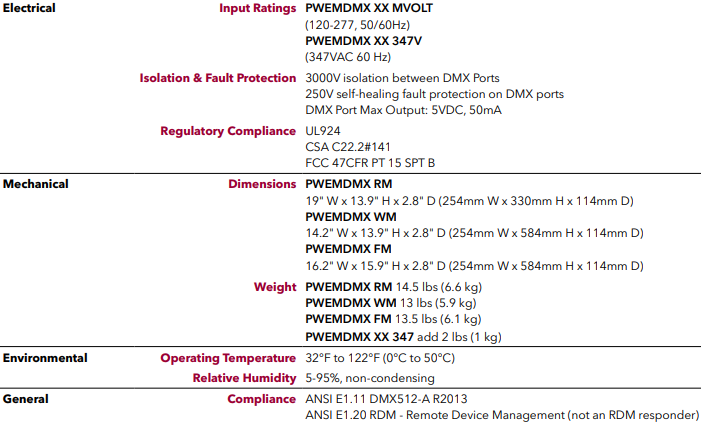

Specifications
