Product Description

NuDelta LCN12 LogiCue NET 12 Channel Controller

Overview

The LogiCue Net System is a version of our cue light system that works over standard ethernet wiring and switches. The LogiCue Net System can run on its own network or on the same network as most common lighting systems such as ETC and Artnet. The LogiCue Net System can also work over a Dante audio network. Are 12 channels not enough? You can combine up to four controllers on the same network for up to forty eight channels of cue lights. The cue lights are powered by power-over-ethernet (POE) switches to keep wiring simple. The Logicue Net cue light has two LEDs for additional brightness and different color combinations and options.

LCN12 Controller Front

The LCN 12 Controller features 12 sets of Standby and Go buttons. Each channel of the controller has an LED and diffuser button on it. The LED color matches the color mode of the cue light. There is a Main Go button so that multiple channels can be activated at once.

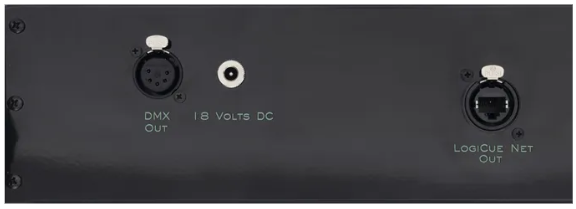

LCN12 Controller Rear

The LCN 12 features a Network output and a DMX output. The network output is used for communication with the cue lights. The DMX output can be used to send twelve on/off signals to DMX devices. This allows you for example, to use a LED tape and decoder setup as a cue light.

Just the Right Fit

After years of touring to different venues around the world, we kept seeing cue light systems that were either well-engineered into the building or poorly constructed afterthoughts that were not practical, portable, or safe. We wanted a cue light system where cue lights could be put anywhere around the theatre where it would help cue actors or crew members. Cue lights can be placed backstage, behind flats, behind scenery, on escape stairs, in orchestra pits, below trap doors, at the audio mix position, or wherever an actor or crew member may be during a show. Modern performing arts facilities are commonly equipped with multiple ethernet connection points throughout the building. Ethernet wiring can be used for lighting control, audio and video distribution, and automation control. It made sense that the LogiCue System could be incorporated into that same wiring system.

Specifications

• FCC Part 15 Certified
• CE Certified
• UL and ETL certified power supply
• 2 year warranty

Dimensions of Controller

• 19 inches (482.6 mm) wide (Standard rack width)
• 3.5 inches (88.9 mm) tall (2 standard rack spaces)
• 3 inches (76.2 mm) deep
