MegaLite Drama FS-LED 900 Spot LED Fixture With DMX Controller
Description:
The Drama FS‑LED 900 is a powerful DMX‑controlled follow‑spot LED fixture. The unit is a hybrid as it uses electric motors to control most of its optical functions, yet a human still operates it.
It allows integration into any application already using automated lighting to use the same theatrical DMX control to control functions such as blackout, colors, zoom, and Iris directly from a control desk, giving control to the programmer without needing a communication system with the operators.

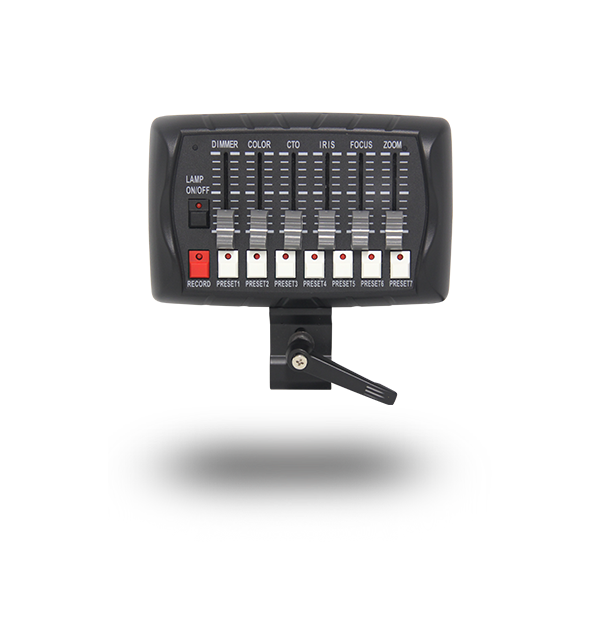

It also comes with its DMX mini controller that allows pre‑program buttons to be created for easy recalling seance to be controlled by the operator.
The unit has a color wheel that produces a red, green, yellow, blue, orange, and white spotlight. It features a CTO wheel, used to adjust color temperature and the hue of each primary and secondary color.
The unit's built‑in iris allows for easy adjustment of the spot's diameter, which is excellent for medium to long throws.

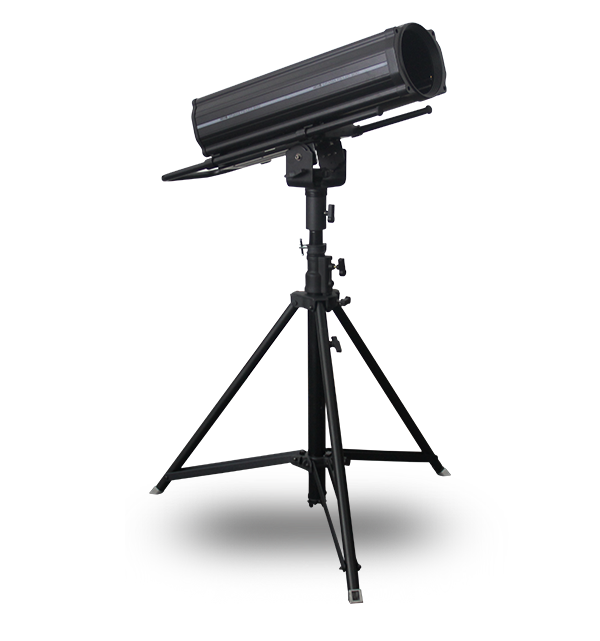

The unit ships with the stand and is compact, allowing easy transport and use in cramped spaces.
Features:
Brightness: The Drama FS-LED 900 is equipped with a 350W COB LED and 3 color temps.
Effects: The Drama FS-LED 900 has a multitude of effects including iris, dimmer, focus, shutter, zoom and 5-color wheel with fader.
Control: The Drama FES-LED 900 is equipped with a DMX rail-mounted controller for easy control.
Included in the Package: FS-LED 900 Spot, Stand, DMX Mini-Controller
SPECIFICATIONS:
ITEM ID:
7048
DMX CONNECTORS:
3 & 5-Pin XLR Connectors In/Out
POWER CONNECTION:
Panel Mount Power Con Type In/Out Connection (Nema 5-15 To Blue Power Con Type Cable Included)
THERMAL:
Maximum Ambient Temperature 104º F Maximum Surface Temperature 140º F
DISPLAY:
Digital
FASTENING SYSTEM:
Mounting Yoke For Stand (Black Die-cast Aluminum Stand Alone)
ZOOM ANGLE:
8º to 13º
COLOR:
5 Color Wheel With Fader & DMX Control
CTO:
3 CTO Filter 4353K, 4997K, 5062K With Fader & DMX Control
FOCUS:
Manual Focus With Fader & DMX Control
IRIS:
Mechanical Iris With Fader & DMX Control
DIMMER:
Electronic Dimmer With Fader & DMX Control
SHUTTER:
Electronic Shutter With DMX Control Only
LED TYPE:
350W COB LED
CRI:
91.1>
CCT:
5080K on Open
LED LIFETIME:
60,000 to 100,000 Hours
POWER SUPPLY:
Universal 100V-240V 50/60 HZ
BALLAST:
Electronic
POWER CONSUMPTION:
Watts: 490W / Amps: 420A
PROTOCOL:
DMX 512
DMX CHANNELS: 7 CHANNE:
Dimmer, Strobe, Iris, Color, CTO, Focus, Zoom
OPERATING MODE:
Rail Mounted Controller (Included) DMX Controlled
PARTS:
PART NAME:
PART ID:
Drama FS-LED 900
7048
BLACK DIECAST ALUMINUM STAND (INCLUDED)
P-STAND-2
ROAD CASE FOR FIXTURE & STAND
CAS-7048-1
LED
7046-LED
Main PCB Card
7048-PCB-MAI
Power Supply
7048-POW
Male & Female Power Connection
7046-CON-POW
Base Knob Set
7048-KNO-BAS
Controller PCB
7048-PCB-CON
LED Driver
7048-PCB-DRI
Display
7048-PCB-DIS
Zoom Ban
7048-BAN-ZOO
