Product Description

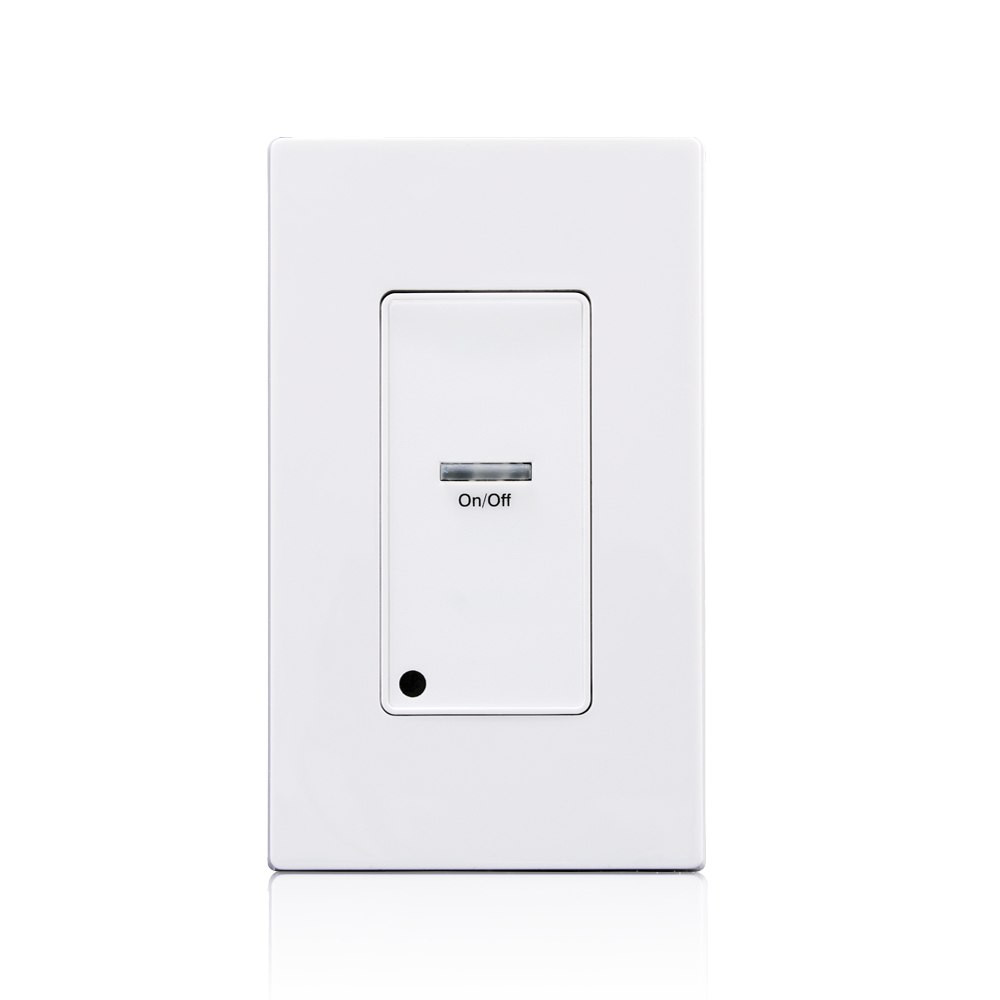

Leviton Low Voltage Pushbutton Station, 1 Button-On/Off, 1 Gang, White.
The low voltage switch line from Leviton incorporates reliable technology into the contemporary Decora design.
Features & Benefits:
* Status LED for each button provides true relay status
* Matching screwless wallplate
* Switches can be programmed for ON, OFF, ON/OFF, Groups, or Presets/Scenes when used in conjunction with a Z-MAX lighting Control Relay cabinet
* Can be integrated into Omni-Bus network utilizing 114A00-1 Universal Switch Interface Module
* All modules are CE, FCC, UL (ETL), SASO, and C-Tick approved
DESCRIPTION The Leviton line of Low Voltage Switches incorporates reliable technology into the contemporary Decora® style. They can be ordered from one button to 10 buttons per gang and are mounted in a standard deep switch box.
SPECIFICATIONS GENERAL • 1-10 buttons • Status LED for each button provides true relay status • Matching screwless wallplate • Switches can be programmed for ON, OFF, ON/OFF, Groups, or Presets/Scenes when used in conjunction with a EZ-MAX Plus Relay Control Panel
LOW VOLTAGE SWITCHES WORK WITH • EZ-MAX Plus Relay Control Panels • a-2000® dimming cabinets with analog card* • MDS cabinets* • Low voltage equipment by others*
WIRING • 1 wire for +24VDC • 2 wires per button (1 wire for switch, 1 wire for LED) • 1 wire for LED locator
POWER • Input power: 24 VDC • Consumption:
Station Unit Load Consumption @ 24Vdc Station 1 Unit Load = 25mA
1 Button 0.5
2 Button 0.8
3 Button 1.1
4 Button 1.4
5 Button 1.7
6 Button 2.0
8 Button 2.5
10 Button 3.0
SETUP AND PROGRAMMING • Wire terminals and install
PHYSICAL DIMENSIONS • 4 5/16" h x 1 5/8" w x 1 3/4" d • Use 2 1/4" Deep switch box
SWITCH PLATE • Decora
CUSTOM LABELING • Custom labeling is available from the factory • Custom labeling kits are available for use in the field
ENVIRONMENTAL • 32 to 104°F (0 to 40°C) relative humidity less than 90% non-condensing
*Specific features determined by HOST product
Product Features
Color: White
Input Power: 24V DC
Product Line: Low Voltage Switches
Product Type: Keypad
Material Specifications
Size: Use 2 1/4:" Deep switch box
