Product Description
ILC KS-MOM Key Switch, Momentary, Stainless Steel
Overview
Key switch stations provide an extra level of security that limits lighting control access to only those with the appropriate key. Switch stations have a high quality 5 tumbler key switch, are prewired and ready to install install in any standard switch box. Switch plates come in a durable stainless steel finish.
Features
- Made in the USA
- Switches are heavy duty momentary or maintained
- Secure 5-tumbler high quality switches
- Direct wire to lighting controller
- Durable switch plates in brushed stainless steel
- Hardware is included for mounting and wiring
- Mounts in a standard switch box
- Wires are installed for easy termination
- Program each button to control any relay(s), group(s) or preset(s)

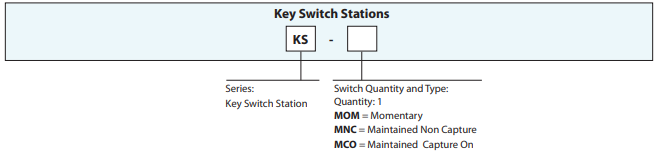

Ordering Information

Specifications
Physical:
- Mounts in a standard switch box
- Standard switch plate sizes
- Mounting screws provided
- Switch: 0.87” diameter stainless steel
- Durable stainless steel switch plate
Switches:
- Momentary SPDT
- Maintained SPDT (on-off-on) key removable in “ON” or “OFF” position (MNC - Non Capture)
- Maintained SPDT (on-off-on) key removable in “OFF” position (MCO - Capture On)
Electrical:
- Switch:10 Amps @ 28 VDC or 125 VAC
Operating Environment:
- Location: Interior Space
- Operating Temp.: 0° to 60° C
- Humidity: 10% to 90% Non-condensing
- Atmosphere: Non-explosive/corrosive
- Vibration: Stationary
