Product Description

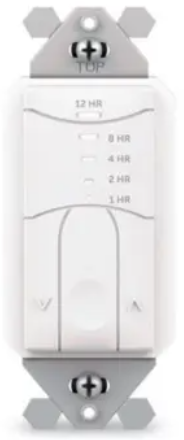

ILC ILC-SWX-843-1-12H-IV Interval Timer Switch, Low Voltage, 12 Hour, Ivory
Note: The item above is shown in white the color of the actual product is ivory.
Overview
The INTELLIGENT LIGHTING CONTROLS interval timer switch provides an automatic lighting control solution that is intuitive to operate. Designed with contractors in mind, the unit is significantly shallower than typical timers, resulting in less crowded wall boxes. Additionally, versatile wiring enables usage with or without a neutral connection. For interval adjustment, raise and lower buttons are present in addition to the on/off button. Five vertically stacked LEDs are provided to indicate the timer setting / time remaining. Configurable parameters include Maximum Time Setting, Blink Timeout Warning, Turn on Timer Levels, and LED Indication. This stylish unit also matches the INTELLIGENT LIGHTING CONTROLS family of wall switch occupancy sensors and 0-10V dimming wall switch sensors.
Features
- Accommodates Neutral (3-Wire) and No-Neutral (2-Wire) Installation
- Electronically Timed Switching Ensures Long Relay Life
- 5 LED Time Level Indicators
- Configurable Parameters including Maximum Time, Turn on Timer Setting, & Blink Warnings
- Enclosure is 25-40% Shallower than Other Timers (< 1” Depth into Wallbox)
- Self-Grounding Mounting Strap
Ordering Information

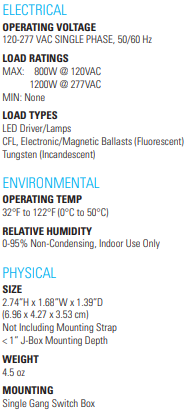

Specifications
