Product Description
ILC ILC-SWX-821-BK 2 or 3-Way Wall Switch, Line Voltage, Black
Note: The item shown above is white the color of the actual product is black.
Overview
The SENSORWORX line voltage wall switch provides a simple solution for spaces where switching from one or two
locations (i.e. 3-way switching) is required. In particular, this unit provides a companion upstream 3-way switch for a
SENSORWORX model SWX-823 dimmer for 0-10V lighting loads. The visual style of this single-button toggle switch
matches the rest of the SENSORWORX family of wall switch occupancy sensors and dimmers.
Features
- Works as Standalone or 3-Way Switch
- Accommodates Neutral (3-Wire) and No-Neutral (2-Wire) Installation
- Electronically Timed (i.e. Zero Cross) Switching
- Ensures Long Relay Life
- Meets NEC 404.2(c) & 404.22 Guidelines Regarding
- Powering Over Ground & Current Leakage
- White or Blue Locator LED
- Self-Grounding Mounting Strap
- Modern Look and Intuitive Easy-Tap Button
- Style Matches Other SENSORWORX
- Wall Devices (i.e. Sensors & Dimmers)

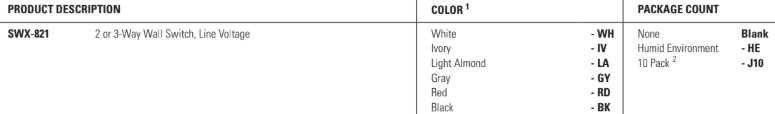

Ordering Information

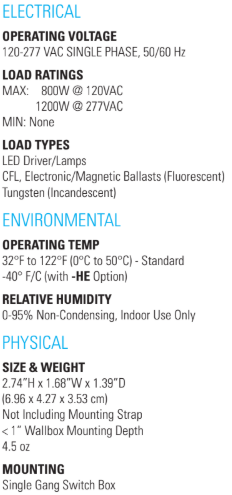

Specifications
