Product Description
ILC ILC-SWX-803-RD Decorator Dimmer Switch, Low Voltage, Momentary, 0-10V, Red
Note: The item shown above is white the color of the actual product is red.
Overview
The INTELLIGENT LIGHTING CONTROLS low voltage dimmer & switch provide attractive companion wall stations for a low voltage sensor system. Many spaces now require by code (e.g., ASHRAE 90.1, IECC, Title 24) manual on, partial-on, or full range dimming user operation in addition to an occupancy sensor providing automatic off control. The simplest way of achieving this is by adding a low voltage wall station that interfaces with the power pack controlling the rooms lighting. Adding a switch to a low voltage sensor system also enables users to override a space’s lighting off if necessary. Functioning as a momentary switch, the one-button wall station is intuitive to use and provides pleasant tactile feedback. Visually, the unit matches the INTELLIGENT LIGHTING CONTROLS line of wall switch sensors, ensuring a consistent style across multiple spaces on a project. Additionally, the single button switch has an integrated locator LED with multiple color and intensity settings. The three-button dimming unit has an integrated 0-10V output, intuitive raise/lower buttons, and a five LED level indicator.
Basic Operation
The INTELLIGENT LIGHTING CONTROLS one-button low voltage wall station functions as a momentary switch with a pulse length of 250 msec. Typically, it is utilized along with any INTELLIGENT LIGHTING CONTROLS power pack with the auxiliary switch input option (e.g. model ILC-SWX-900- AX). Using a four-conductor low voltage wire (typically 18 AWG), low voltage power, common, and relay status is wired from the power pack to the switch. The switch output is then wired back to the power pack’s auxiliary switch input. For applications requiring Vacancy (e.g., Manual On) operation, the switch signals the power pack to turn on lighting after the unit’s button is pressed. To achieve multi-way switching, two or more units can be wired in parallel.
On the three-button dimming units, an additional 0-10V output wire is provided to connect directly to fixtures. By default, the lights will always come on to the last dim level, however the unit can be programmed to turn-on to a preset level in order to accommodate partial-on applications.
Features
- Decorator Style Fits Common Wall Plates (not included)
- Less than 1” Depth in Wall
- Multiway Switching Capable (e.g., 3-way, 4-way)
- Intuitive Operation
- Five Segment White LED Indication of Dim Level
- Blue Locator LED when Lights are Off
- Matches Styling of SWX Wall Switch Sensor
Ordering Information

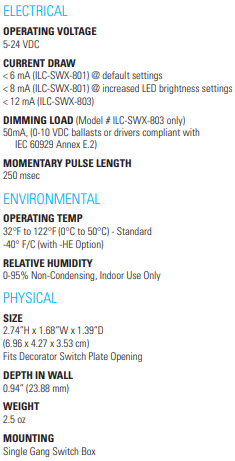

Specifications
