Product Description

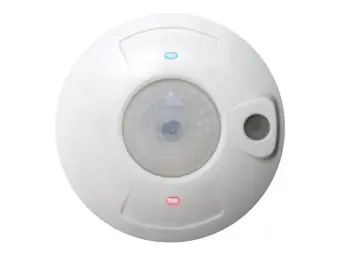

ILC ELCS-06-AR EVO Lite Ceiling Sensor - 600 Sq Ft - Small Motion - 360 - Auxiliary Relay
Overview
The EVO Lite Ceiling Sensor is a low profile ceiling mount sensor designed to install in a standard commercial ceiling. The sensor is provided with dual-tech operation utilizing passive infrared and passive acoustic sensing. Configured with a few simple button presses for easy set-up and adjustment, this sensor supports occupancy and vacancy in a single device. The ELCS also supports traditional 18/3, 24VDC wiring, offering the contractor multiple wiring options, and allowing the ELCS to be used with the 24VDC occupancy sensor inputs of ILC’s LightLEEDer and AP3 systems, as well as most 3rd party systems and power packs.
The occupancy sensor also has a full range photo sensor and supports open loop daylight dimming. The EVO Lite occupancy sensor uses the newest digital components and detection techniques for superior performance. Sensors detect occupant movement as they move through the field of view via passive infrared technology. With 2 models available for both small and large motion and an auxiliary relay for HVAC, the ELCS is a cost effective and feature rich sensing device. Acoustic technology enables enhanced detection once the lighting is turned on.
Features
- Made in the USA, meets BAA and BABA requirements
- Dual Tech sensor with PIR and acoustics
- Available in small/large motion detection
- Incorporated photo sensor for daylighting 0 to 1500 fc
- 2 Isolated RJ45 jacks
- ILC blue rear cover
- Wire leads for hardwired connection, photo sensor 0-10V dimming, and auxiliary relay
- Push-button switch for configuring sensor settings
- LED indicators for programming sequence verification and sensor activation PIR (red) and Acoustic (blue)
- Same enclosure and mounting as LightSync digital sensor
- Auxiliary relay output for connection to BAS system or Plug-load Power Pack
- Recommended mounting height: 8-15ft
Specifications
Physical:
- 3.6”W x 3.6H x 1.4D (91mm x 91mm x 36mm)
- Low profile recessed ceiling mounting
- Spring retention clips for mounting in 3” hole
- Junction box mounted plate and trim ring provided
- RJ-45 In/Out ports
- 3-Wire #20AWG leads for auxiliary relay output NO/NC
Integrated Interfaces:
- Photocell hardwired direct 0-10VDC Sync control
- RJ-45 ports for hardwire over CAT-5 to EVO Lite Power Pack
- Aux relay output for BAS or Fire system
Operation:
- Configuration performed on device
- An initial PIR event is required to enable acoustic functionality
- Acoustic sensing overlaps and enhances/extends overall detection and time delay
- Automatic gain control filters ambient noise
- Sensor will re-trigger with acoustic only after an initial 5 minute time-out before a PIR trigger is required to restart the cycle
- AR relay included for BAS or plug-load power pack operation
Electrical:
- 10mA @15VDC
- Dimming: 100mA sink
Operating Environment:
- Location: Interior space
- Operating Temp: 0° to 50° C (32°F to 122°F)
- Humidity: 10% - 90% non-condensing
- Atmosphere: Non-explosive/corrosive
- Vibration: Stationary
