Product Description

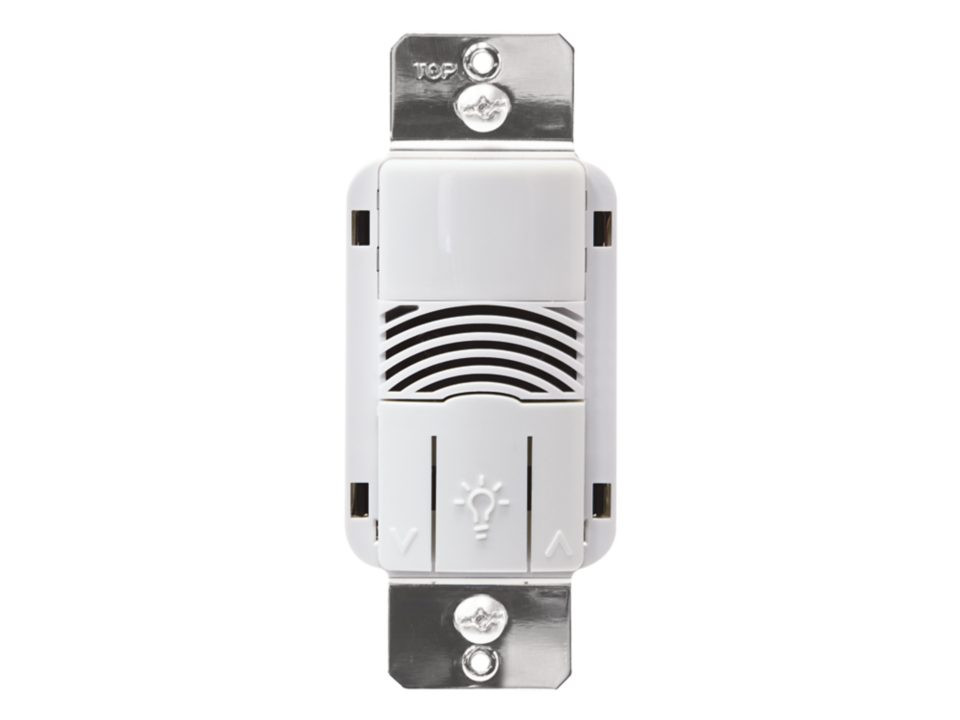

Cooper Lighting VSW-D-010-V Wall Switch Sensor, Dual Tech, Vacancy, Line Voltage, 0-10V Dimming, Ivory
Note: The item in the image above is shown in white, the color of the actual product is ivory.
Overview
Cooper Lighting Solutions’ 0-10V Dual Tech Sensor Dimmer is a 3 in 1 solution that combines functionality of a switchpack, a sensor and a 0-10V dimmer into one wallbox device to help customers save labor costs as well as meet the latest energy codes and standards. Cooper Lighting Solutions’ 0-10V Dual Tech Sensor Dimmer solution offers a convenient and cost effective way for users to satisfy commercial energy codes like ASHRAE 90.1 and California Title 20 that require designs that enable energy savings for Commercial facilities. Some of the requirements that can be met by a solution incorporating this device include Area Control, Automatic Lighting Shutoff, Manual ON or Partial ON (ASHRAE 90.1 only), Multi-level Lighting Control and Occupancy Sensor Control. This product can be used in Single-pole (one location) as well as 3-Way (multi-location) applications and is aesthetically compatible with Cooper Lighting Solutions’ decorator style devices and wallplates. This device also allows isolation of its relay for occupancy based control of external power packs. There is an adjustable Auto ON/Manual ON light level setting, so the lights will only initially turn ON to a user defined setting.
Features
- Compatible with dimmable 0-10V LED and FLR ballasts
- Dual Technology Passive Infrared and Ultrasonic sensor technology
- Fully adjustable Auto ON/Manual ON light level settings
- Provides 180 degree field of view with 900 sq. ft. of major and 324 sq. ft. of minor motion coverage
- Selectable time delay of 15 seconds (Test mode), 5 minutes, 10 minutes, 15 minutes, 20 minutes (factory default), 30 minutes
Ordering Information

Specifications
