Product Description

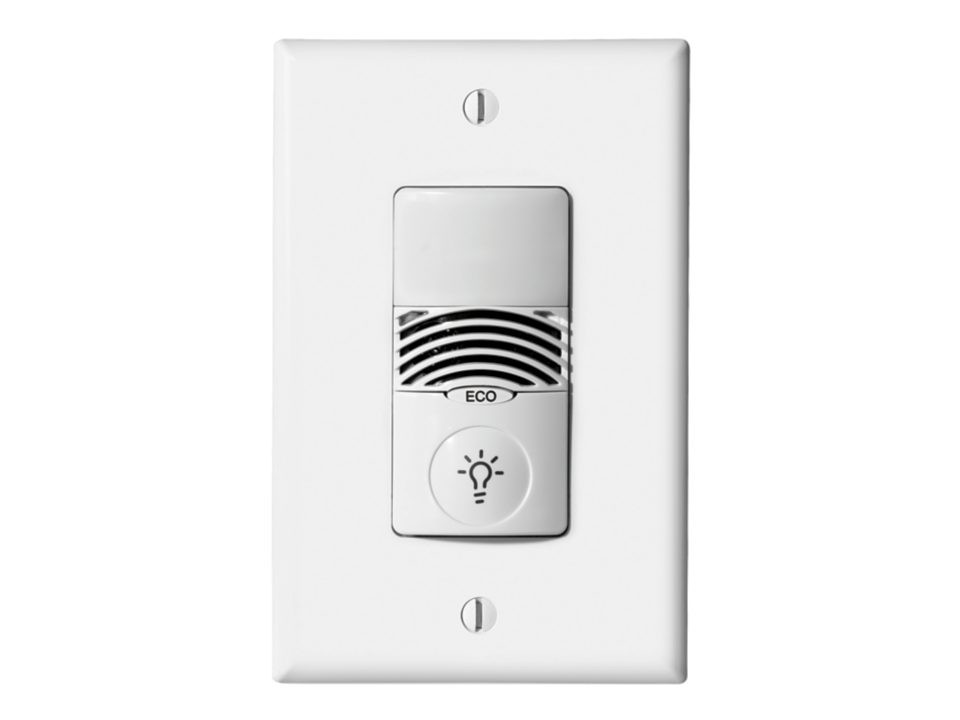

Cooper Lighting VNW-D-1001-MV-V Wall Switch Sensor, Dual Tech, Vacancy, Line Voltage, No Neutral, Ivory
Note: The item shown in the image above is white, the color of the actual product is Ivory
Overview
The VNW-D-1001-MV combines Ultrasonic (US) and Passive Infrared (PIR) sensor technologies to monitor a room for occupancy to deliver maximum energy savings and ensure the greatest sensitivity and coverage for tough applications without the threat of false triggers. Manual On switch is used to turn the lights ON and then either or both technologies are used to keep the lights ON. The lights are turned ON by pressing the universally recognized light icon pushbutton. The sensor includes self-adaptive technology that continuously self-adjusts sensitivity and time delay in real-time, maximizing the potential energy savings that are available in the particular application.
Features
- Motion sensing lighting control and conventional wall switch allin-one that is used to for energy savings and convenience
- Does not require a neutral wire for installation making it ideal for retrofit applications
- Requires Manual On for activation
- Air-gap switch ensures no leakage current to load
- Selectable built-in light level sensor
- Products tested to NEMA WD 7 - 2024 Occupancy Motion Sensors Standard
- LED Rated
