Cooper Lighting OSW-P-1001-MV-B Wall Switch Sensor, PIR, 120/277V, Black
Note: The item shown in the image above is white, the color of the actual product is black.
Overview
The OSW-P-1001-MV Passive Infrared Single Level or 3-way Occupancy Sensing Wall Switch is a motion sensing lighting control and conventional wall switch all-in-one that is used to for energy savings and convenience.
OSW-P-1001-MV is designed to detect motion from a heat-emitting source (such as a person entering a room) within its field-of-view and automatically switch lights ON. These sensors have multi-segmented lenses. For units to sense motion, the person must cross between two segments. The distance between segments increases the farther you are from the sensor, so motion has to be larger the farther you are from the unit. PIR sensors are considered line-of-sight sensors, meaning that the sensor must be able to have a direct line-of-sight to the person making the motion. In Automatic On Mode, the lights turn ON when a person enters the room. In Manual On Mode, the lights are turned ON by pressing the pushbutton. The sensor provides true multi-way ON/OFF control. When lights have been activated, the lights will remain ON as long as one of the sensor(s) continue to detect motion. The occupant may manually turn OFF the lighting by pressing the ON/OFF button on any of the connected devices. If the room becomes vacant and the lights are ON, the lights will turn OFF when the unit that detected motion last times-out.
Features
- Replaces single or 3-way switches
- No neutral wire
- Integral Daylight Sensor
- Choice of Manual On or Auto On operation
- Works with Incandescent, LED, Fluorescent, CFL, MLV, ELV or 1/2 HP motor load
- NEMA WD7 Standard robotic method utilized to verify coverage patterns

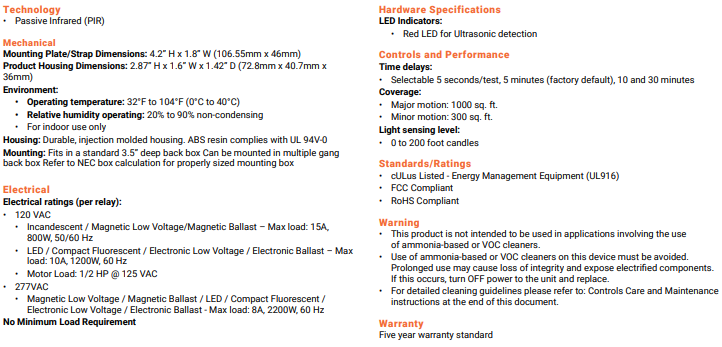

Specifications
