Product Description
Cooper Lighting OSW-P-010-BK Wall Switch Sensor, PIR, Line Voltage, 0-10V Dimming, Black

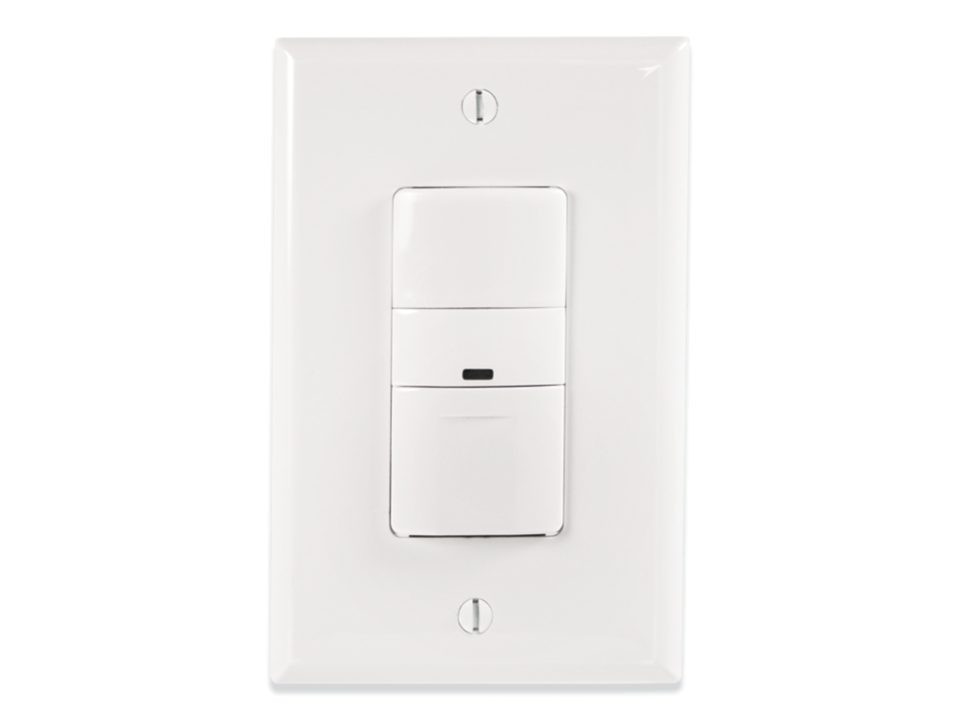

Note: The item shown in the image above is white, the color of the actual product is black.
Overview
Cooper Lighting Solutions’ 0-10V dimmer sensor is a 3 in 1 solution that combines functionality of a switchpack, a sensor and a 0-10V dimmer into one wallbox device, to help customers save labor costs as well as meet the latest energy codes and standards. Cooper Lighting Solutions’ 0-10V dimmer sensor solution offers a convenient and cost effective way for users to satisfy commercial energy codes like ASHRAE 90.1 and California Title 20 that require designs that enable energy savings for Commercial facilities. Some of the requirements that can be met by a solution incorporating this device include Area Control, Automatic Lighting Shutoff, Manual ON or Partial ON (ASHRAE 90.1 only), Multi-level Lighting Control and Occupancy Sensor Control. This product can be used in Single-pole (one location) as well as 3-Way (multi-location) applications and is compatible with Cooper Lighting Solutions’ decorator style devices and wallplates. This device also allows isolation of its relay for occupancy based control of external power packs.
Features
- Compatible with dimmable 0-10V LED and FLR ballasts
- Neutral wire required for installation
- Adjustable low-level and high-level trim settings
- LED indicator to provide motion and configuration feedback
- Build-in surge protection for longer life
- Push button and rotary dials for easy configuration settings
Ordering Information

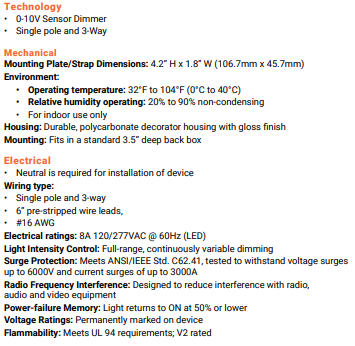

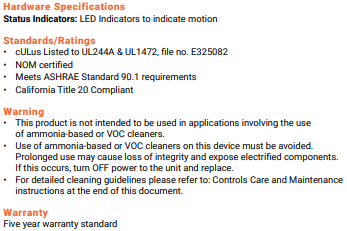

Specifications
