Product Description

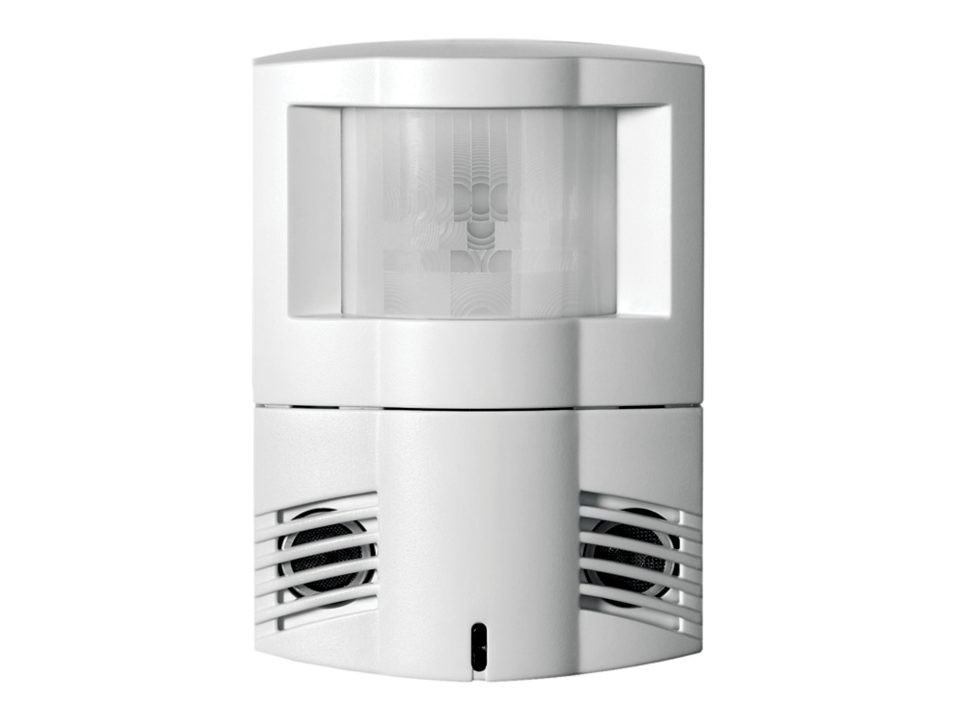

Cooper Lighting OAWC-DT-120W Wide View Sensor, Dual Tech, 120 Degree Wide View, Low Voltage, White
Overview
The Dual Technology sensor’s combination of Ultrasonic and Passive Infrared technologies offers the most complete sensing equipment available today. Self-adjusting Dual Technology sensors drastically simplify and reduce a contractor’s installation and adjustment time period.
The OAWC-DT combines Ultrasonic (US) and Passive Infrared (PIR) sensor technologies to monitor a room for occupancy to deliver maximum energy savings and ensure the greatest sensitivity and coverage for tough application without the threat of false triggers. PIR is used to turn the lights ON and then either or both technologies are used to keep the lights ON. The sensor includes MicroSet self-adaptive technology that continuously self-adjusts sensitivity and time delay in real-time, maximizing the potential energy savings that are available in particular application. In Automatic On Mode, the lights turn ON when a person enters the room. In Manual-On Mode, the lights are turned ON by activating a momentary switch (model # GMDS-*) that is connected to the sensor. When used with 2 level lighting (-R model only), Bi-level Automatic On can be achieved which allows Zone 1 to come on automatically upon occupancy. Zone 2 does not come on unless the occupant presses the optional momentary switch. When enabled, the daylighting feature (-R models only) prevents lights from turning ON when the room is adequately illuminated by natural light.
Features
- MicroSet self-adjusting time delay and sensitivity
- Optional built-in light level sensor
- Optional BAS/HVAC isolated relay
- NEMA WD7 Guide robotic method utilized to verify coverage patterns
- Manual On feature for use with 1 or 2 momentary switches controlling 1 or more Switchpacks
- Selectable Walk-Through Mode

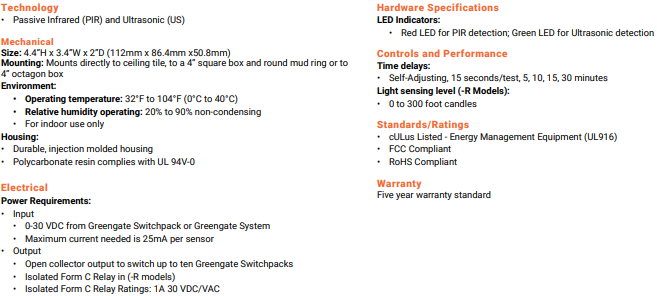

Specifications
