Product Description

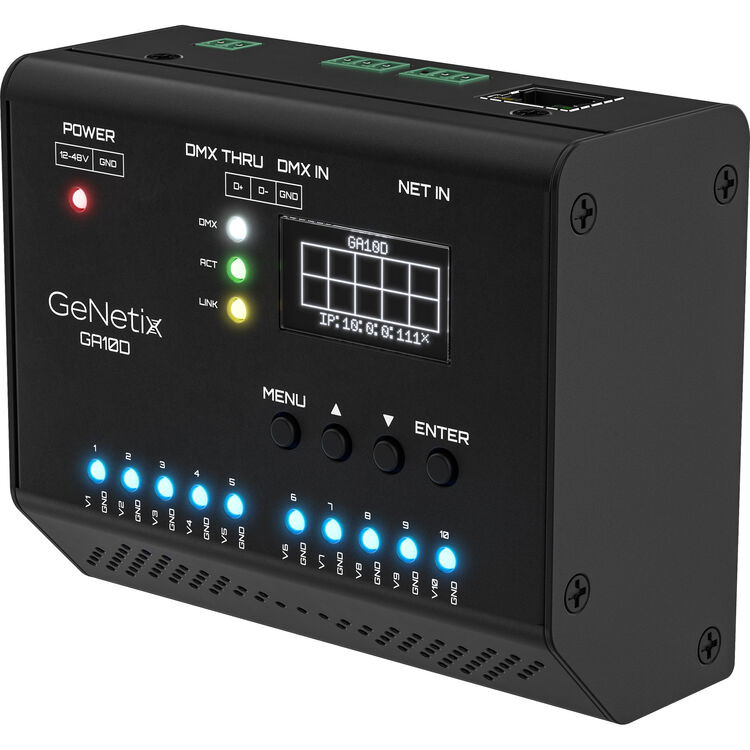

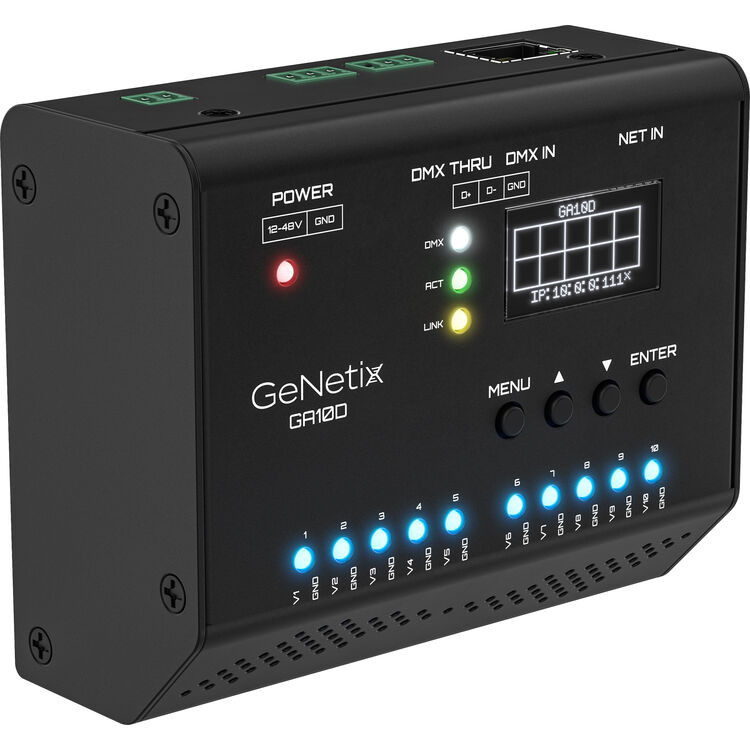

ChamSys GENETIXDIN010V GeNetix GA10D DIN DMX to Analog 0-10V

Overview

Add DMX control to your analog (0-10V) lighting fixtures with the ChamSys GeNetix GA10D, a DIN rail mountable 10-Port DMX/Art-Net/sACN to Analog 0-10V converter fitted with phoenix screw terminals for DMX in/through and 0-10V out from terminal block connectors. The GA10D offers a design ideally suited to the needs of permanent installations such as entertainment venues, event spaces, and architectural lighting designs.

The GA10D is powered via an external 12-48V power supply (sold separately) and features an onboard menu display with push-button navigation for unit configuration, along with LEDs that provide visual indication of output port status.

Features

• For Venues, Event Spaces & Architectural
• DMX to 0-10V Analog Conversion
• DIN Mountable for Easy Installation
• 10 Phoenix Screw Terminal Analog Outputs
• DMX In/Thru, Art-Net/ sACN Input
• Ethernet (RJ45) Input
• Onboard Menu Display
• Push Button Controls
• LED Output Status Indicators

Includes

• ChamSys GeNetix GA10D DIN DMX to Analog 0-10V
• DIN Rail Mount
• 2 x Wall Mount
• 2 x 5-Port 10Scene Connector
• 2 x 10-Port Trigger Connector

Specifications
