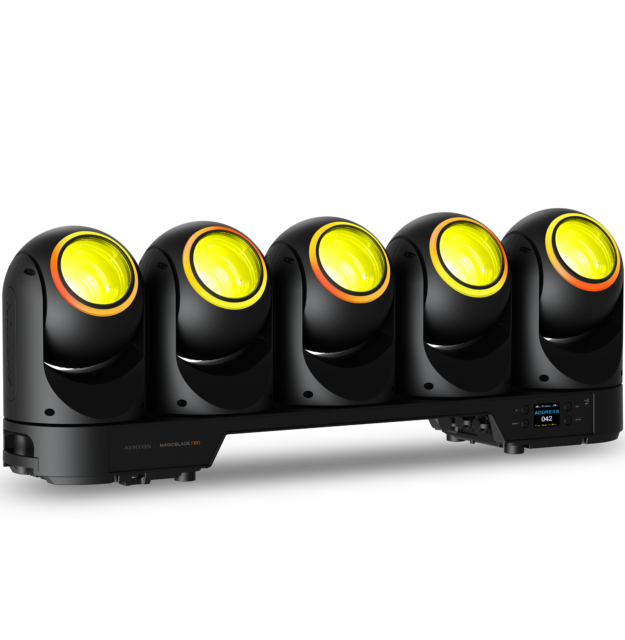

Ayrton AY015380 MagicBlade Neo 5x 120W RGBL LED, 3 to 30 Degree
Overview
Built on the all-new MagicDot Neo platform, it features five independent moving heads, spaced 5 mm apart, with continuous rotation on both pan and tilt axes. Its innovative ‘Shortcut’ function expands the scope for building complex effects. Fitted with five individual 120 W RGB-L multi-chip LED sources, each paired with a high-efficiency 100 mm optic integrated into a perfect sphere, it delivers a total luminous flux of 15,000 lm. MagicBlade Neo offers an extended colour space and smooth mixing of pastel or saturated colours, enabling perfect colour repeatability with a CRI above 86. Each MagicBlade Neo beam can switch instantly from Beam to Wash, with a 10:1 zoom ratio and a very wide usable range from 3° to 30°.
A drastic reduction in aluminium part thicknesses, optimisation of the cooling system, simplified lens guiding, and the integration of low-density optical components have enabled a significant weight reduction: MagicBlade Neo weighs just 32.4 kg. The high power of this new LED source has required the use of specific cooling systems based on phase-change heat pipes. With extended Ethernet connectivity, it allows the creation of unlimited configurations. MagicBlade Neo is an impressive concept that, at first glance, suggests infinite possibilities: a luminaire with a strong visual signature, impeccable finishes, and an unprecedented level of integration.
Specifications
OPTICS
- 2-element 10:1 zoom high-resolution optic system
- Beam aperture: 3° to 30°
- 5 x Fast motorised linear zoom
- Tempered anti-reflective coated lenses
- 5 x 100 mm front lens
LIGHT SOURCE
- 5 x 5,000 lm RGB-L LED sources
- Total luminaire output: up to 15,000 lumens (integrating sphere measurement, Fan mode STAGE)
- Illuminance at 5m: 16,000 lux (one head)
- CRI: up to 86
- Rated life (L70): up to 40,000 hours
- Flicker-free source management suitable for TV applications and all video-recorded events
MOVEMENT
- Highly accurate positioning
- Moving-head operated via 16-bit resolution
- High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
- Pan and tilt automatic repositioning
- Moving-head range: 5 x infinite pan and tilt rotation
COLOURS
- Sophisticated 4 colours RGB-L mixed, reaching high Colour Rendering Index
- Uniform light beam with no colour shadows, and rich saturated and pastel colour-hues
- 4.29 billion colours (8-bit resolution)
- Virtual CTC channel, from 2500 to 8000K
- Virtual Tint channel
EFFECTS
- Individual control of each head
- Liquid Effect with 60 individual pixels
- Built-in pattern effects for main leds and Liquid Effect, with speed and fade controls
DIMMER / STROBE
- Electronic dimmer from 0 to 100%
- Strobe effect: 1 to 25 flashes per second
HARDWARE FEATURES
- Graphic LCD display with flip function
- 4 menu buttons to set functions
- Integrated wireless CRMX TiMo RDM receiver from LumenRadio
- IP65 XLR 5 pin male and female connectors for DMX connection
- IP65 RJ45 IN / OUT connectors for ethernet connection
- IP65 Power male and female connectors for power connection
- Maximum current available at the output socket : 12 A
CONTROL
- DMX 512 protocol, through DMX cable or a wireless system
- DMX-RDM compatible
- Stand-alone mode and Main/Follow modes
- ArtNet & sACN protocol through Ethernet cable
- Local control panel, with IP65 LCD display
- Footprint of 175 or 184 DMX channels
POWER SUPPLY
- Electronic power supply with active PFC
- 100 to 240 Volts – 50/60Hz
- Power: 800 W maximum
COOLING SYSTEM
- Advanced liquid cooling system
- IP68 Self-adjusting variable speed fans
- Selectable ventilation user modes
- Excess temperature protection
HOUSING
- Moving-head skeleton made in die-cast aluminium
- Base in die-cast aluminium
- Heatsinks in aluminium and copper
- Moulded covers in ABS PC (V0 class)
- Tow-side handles for transportation
- Four heavy-duty feet
- IP65 protection rating
- Exterior finish: black (Carbon)
INSTALLATION
- Fastening bracket system: two Omega ¼ turn brackets designed for use with standard clamps
- Mounting points: eight ¼ turn locking fittings allowing installation of two Omega brackets on luminaire
- Safety cable attachment point
OPERATING PARAMETERS
- Operating positions: all (device on floor or fixed to a support)
- Maximum permitted ambient temperature (Ta max): 45° C (113° F)
- Minimum permitted ambient temperature (Ta min): -20° C (-4° F)
- Minimum usage distance: 0.5 m (1.64 ft.)
COMPLIANCE
EU (EMC & LVD):
- EMC Directive 2014/30/EU
- LVD Directive 2014/35/EU
US (Safety & EMC)
- CFR 47, FCC Part 15, Subpart B:2023
Substance regulations
- RoHS
- REACH
- CP65
SIZE
- Product: 1008 x 200 x 352.5 mm (l x h x d)
- Flight-case foam: 1080 x 270 x 380 mm (l x h x d)
WEIGHT
- Product: 32.4 kg
PRODUCT CODES
- 015380: MagicBlade Neo – Multi Sources IP65 Creative Series
