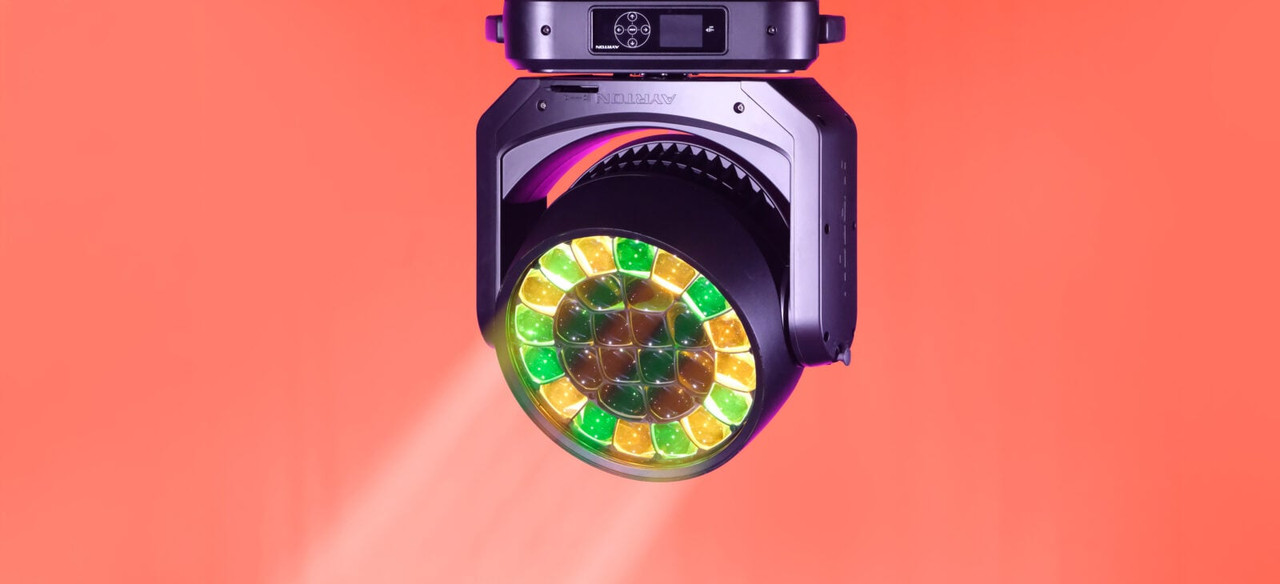

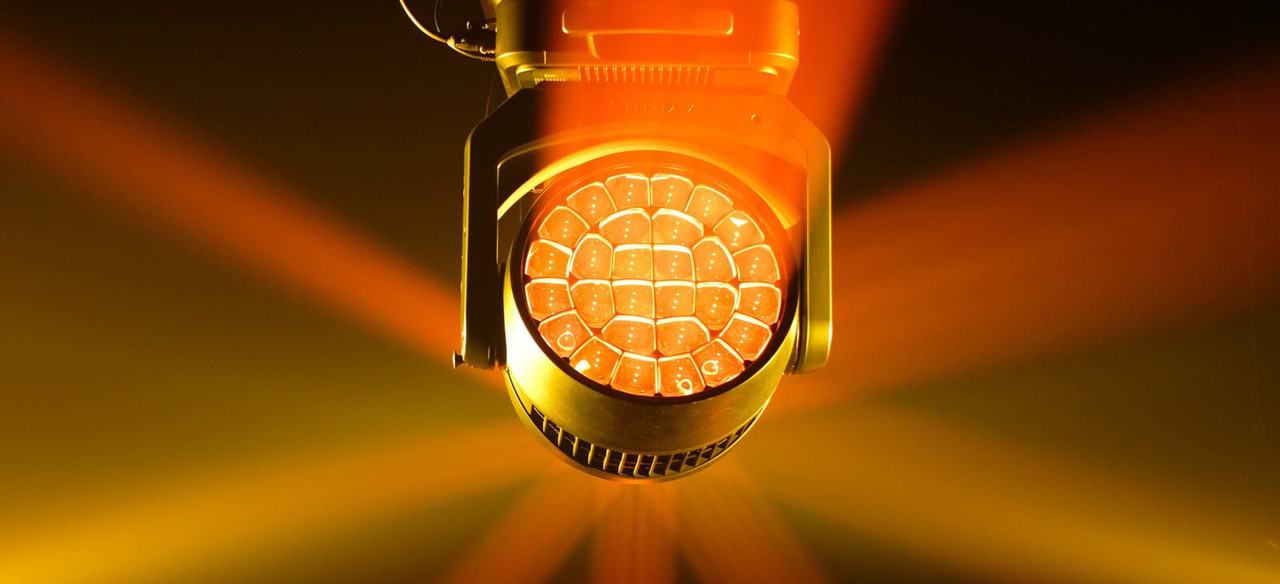

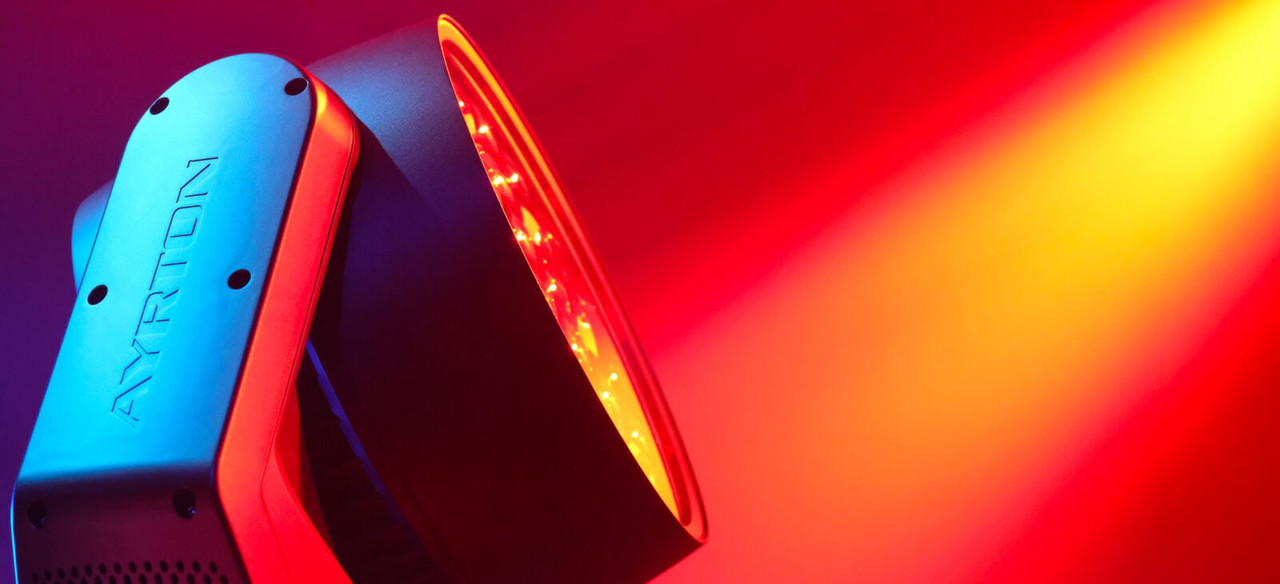

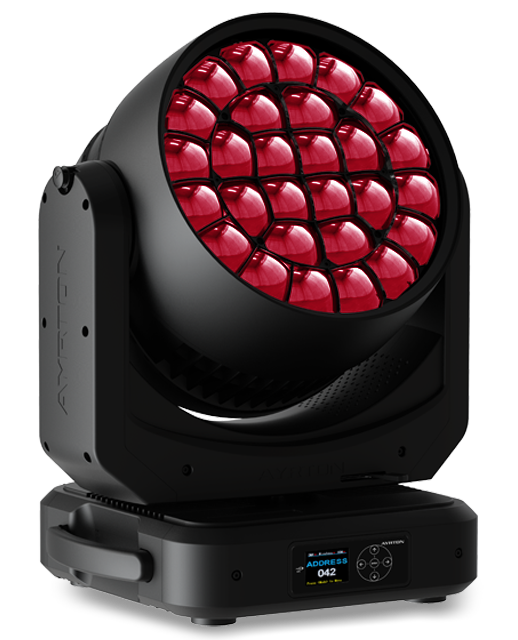

Ayrton AY013920 Nando 1202 LED Wash
Overview
Two years after the release of Nando 502, equipped with new RGB-L LED sources perfectly suited to stage lighting and met with extraordinary success, we decided to create a more powerful new version of this luminaire, which we named Nando 1202.
Featuring 28 high-performance 50-watt additive colour-mixing LED sources, Nando 1202 offers a proprietary optical system built around a 303 mm PMMA cluster paired with 28 precision-machined glass light guides, each with a micro-structured optical exit surface. This new LED source brings the advantage of improved integration within the colour space and enables perfect colour repeatability with a CRI above 86. Nando 1202 delivers a luminous flux of 25,000 lumens and provides perfectly homogeneous mixing of pastel or saturated colours. This new luminaire shifts from Beam to Wash instantly and offers a 15:1 zoom ratio with an exceptionally wide operating range from 3.5° to 53°. Its black honeycomb louvre and the perfect isolation of the light sources from one another significantly enhance contrast. The design of the anti-reflective treated glass window guarantees an optimal visual result and delivers increased performance.
Features
- Graphic LCD display for addressing and special functions settings, with flip function
- 5 menu buttons to set functions
- Excess temperature protection
- Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™
- Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
- Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
- Information menu including hour counter, temperature, software version
Specifications
OPTICS
- 2-element 15:1 zoom high-resolution optic system
- Beam aperture: 3.5° to 53°
- Fast motorised linear zoom
- 28 truncated edges 70 mm frontal lenses
- 303 mm front lens cluster
LIGHT SOURCE
- 28 x 1,200 lumens RGB-L High-Power LED sources
- Total luminaire output: up to 25,000 lumens
- CRI: greater than 86
- Rated life (L70): up to 40,000 hours
- Flicker free sources management, suitable for TV applications and all video recorded events
MOVEMENT
- Extremely accurate positioning
- Moving-head operated via either 8- or 16-bit resolution
- High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movement.
- Pan and tilt automatic repositioning
- Moving-head range: 540° pan & 225° tilt
COLOURS
- Sophisticated 4 colours RGB-L mixed, reaching high Colour Rendering Index
- Uniform light beam with no colour shadows, and rich saturated and pastel colour-hues
- 4.29 billion colours (8 bit resolution)
- Raw colour control with direct access to RGBL
- Calibrated RGB mode with automatic Lime insertion
- Virtual CTC channel with adjustable white point from 2500 to 8000 K
- Tint control channel for ±green
EFFECTS
- 2D & 3D graphical effects capabilities
- Effects can be coupled with beam, wash or matrix applications
- Built-in pattern effects with speed and fade controls for scenic applications
- Individual control of each pixels
DIMMER / STROBE
- Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
- White or colour strobe effect, with speed adjustment from 1 to 25 flashes per second
CONTROL
- DMX 512 protocol, through through IP65 DMX cable or a wireless system
- DMX-RDM compatible
- Stand-alone mode and Main/Follow modes
- ArtNet™ & sACN protocol through Ethernet cable
- Local control panel, with IP65 LCD display
- Choice of 4 DMX modes (from 26 to 150 DMX channels)
POWER SUPPLY
- Electronic supply with active PFC
- 120 to 240 Volts – 50/60Hz
- Power: 1450 W maximum
COOLING SYSTEM
- Advanced cooling system
- Self adjusting variable speed fans for quiet operation (Auto mode)
- Selectable ventilation user modes including Super Silent Mode
- Safety protection against excess temperature
HOUSING
- Moving-head skeleton made of aluminium and steel metal plates
- Head in die-cast aluminium
- Base in die-cast aluminium
- Heatsinks in aluminium and copper
- Arms moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
- Two handles on the base
- Four heavy-duty feet for better stability
- IP65 protection rating
- Exterior finish: black (Carbon)
INSTALLATION
- Fastening brackets system: two Omega 1/4 turn brackets designed for use with standard clamps
- Mounting points: eight 1/4 turn locking fittings allowing installation of Omega brackets on luminaire
- Safety cable attachment point
OPERATING PARAMETERS
- Operating positions: all (device on floor or fixed to a support)
- Maximum permitted ambient temperature (Ta max): 45°C (113°F)
- Minimum permitted ambient temperature (Ta min): -20°C (-4°F)
- Minimum usage distance: 0.5 m (1.64 ft)
COMPLIANCE
EU (EMC & LVD)
- EU (EMC & LVD):
- EMC Directive 2014/30/EU
- LVD Directive 2014/35/EU
US (Safety & EMC)
- UL 1573
- FCC Part 15, Subpart B:2023
Substance regulations
- RoHS
- REACH
- CP65
SIZE
- Product: 446 x 562 x 356 mm (l x h x d)
- Flight-case foam: 495 x 590 x 400 mm (l x h x d)
WEIGHT
- Product: 27.6 kg
