Product Description

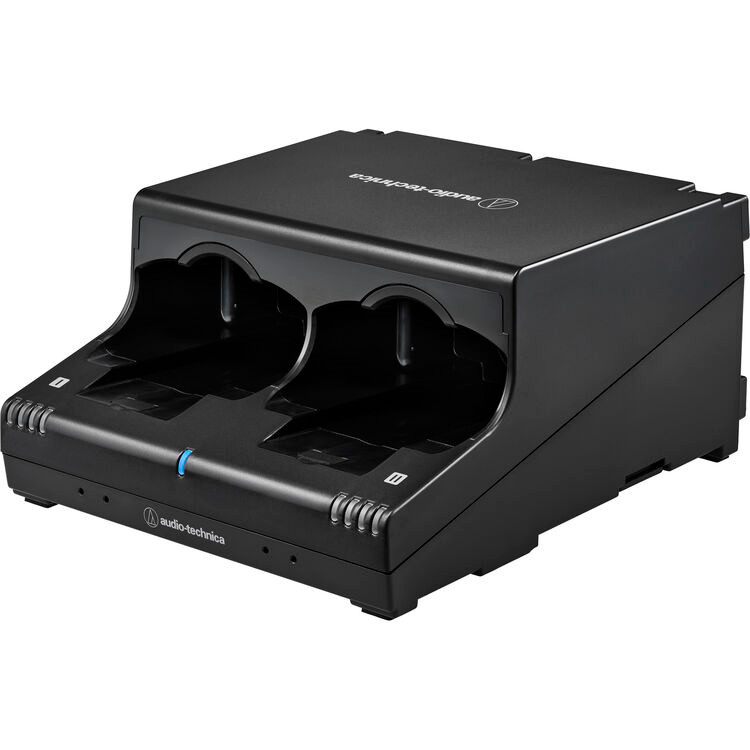

Audio-Technica ATW-CHG6/8620 Handheld and Body-Pack Charger with Rack Tray
Overview
The Audio-Technica ATW-CHG6/8620 is a two-bay charging station and rackmount tray designed for D50-Series wireless system transmitters, providing a convenient charging solution for both ATW-DT3201 bodypack and ATW-DT3202 handheld transmitters. This version of the charger does not include a power supply, but it does include a rackmount tray, mounting plate, two lavalier microphone hangers, and link cables for connecting multiple chargers.
Flexible Power and Monitoring Options
For larger wireless deployments, the ATW-CHG6 supports linked charging configurations. Up to four charging stations can be connected via Cat 5e cable and powered from a single AC adapter (available separately), while up to three stations can be linked and powered through PoE+. Front-panel LED indicators provide clear charging status and battery level information, and these details can also be monitored through Audio-Technica's Wireless Manager software.
Convenient Maintenance and Storage
Designed to streamline system maintenance, the charging station allows transmitter firmware updates while transmitters remain docked. The station also accepts the optional ATW-CHGA6 single battery charger and includes two microphone hangers for convenient lavalier microphone storage when transmitters are not in use.
Rackmount Tray and Other Installation Options
Flexible mounting options make the ATW-CHG6 suitable for a wide range of installations. The included AT8620 Rackmount Tray allows up to three ATW-CH6 charging stations to be mounted in a 2-RU space for high-density applications. In addition, the charging station can be mounted vertically or horizontally on a rack, wall, or other surface.
Features
- Two-Bay D50 Transmitter Charger
- Includes AT8620 Rackmount Tray
- Charges Bodypacks and Handhelds
- Accepts ATW-CHGA6 Charger
- Link up to Four Chargers
- PoE+ Powering Support
- Wireless Manager Monitoring
- Firmware Updates While Docked
Includes
- Audio-Technica ATW-CHG6/8620 Two-Bay Charging Station with Rack Tray for ATW-DT3201 & ATW-DT3202 Transmitters
- AT8620 Rackmount Tray
- Link Plate
- Link Cable (Short)
- Link Cable (Long)
- Set of Link Plate Screws
- 2 x Microphone Holder
Specifications
Power
| Power Source | |
| Power I/O | |
| Center Tip Polarity | |
| AC Input Power | |
| DC Input Power | |
| Power Consumption | |
| Maximum Power Output |
Physical
| Mounting | |
| Color | |
| Operating Conditions | |
| Storage Conditions | |
| Charging Temperature | |
| Dimensions | |
| Weight |
