Product Description

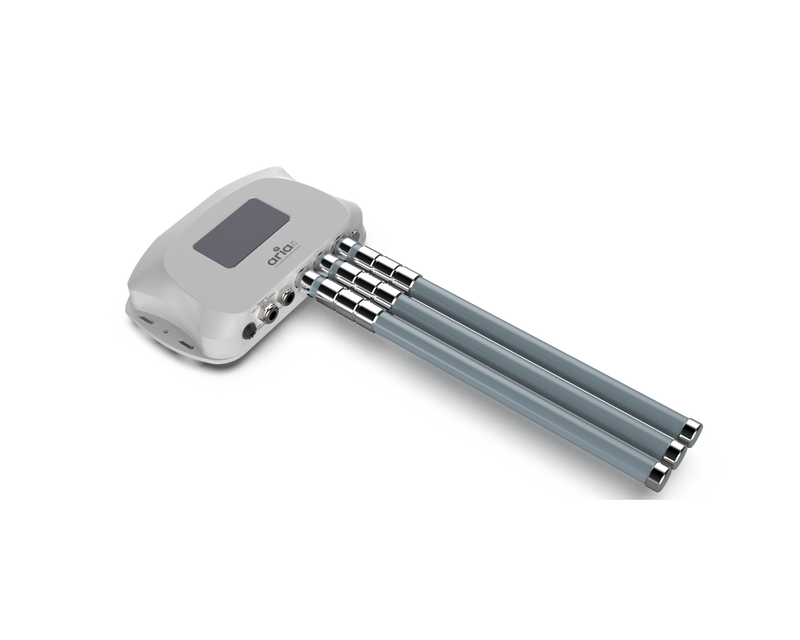

ADJ Aria X2 IPH Bridge
Overview
The Aria X2 IPH is a versatile and rugged wireless DMX gateway, purpose-built for reliable performance in challenging environments. Designed to handle a single DMX512 universe, it bridges wireless and wired DMX with ease, supporting both wireless-to-DMX and DMX-to-wireless configurations.
With integrated WiFi and Bluetooth 5.2, configuration is seamless, whether you prefer using the intuitive Aria X2 mobile app or the built-in front panel with a digital screen. Its IP67-rated enclosure and M12-threaded mounting points ensure the Aria X2 IPH is ready for demanding outdoor and industrial applications.
Wireless performance is powered by the Aria X2 radio module, operating across 2.4 GHz and sub-gigahertz frequencies (2404–2480 MHz, 863–870 MHz EU, and 902–928 MHz US). Intelligent RF features like CSMA-based interference mitigation and over-the-air (OTA) firmware updates help keep your system stable and up to date. Adaptive frequency hopping is also on the roadmap for even greater wireless resilience.
The Aria X2 IPH supports a robust range of protocols, including DMX512, proprietary 802.15.4, Bluetooth 5.2 (BLE), the Aria X2 Mesh Protocol, and the Aria X2 Serial Protocol, designed specifically for communication with a wide variety of fixtures. It’s also fully compatible with ADJ WiFLY, Elation eFly, Magmatic MagFly, and Acclaim Aria, making it an ideal solution for mixed-environment setups.
Connectivity is flexible, supporting multiple antenna options, including the Aria X2 Sub-Gig Antenna, Aria X2 2.4GHz Antenna, and the SM220 Antenna used across Aria, WiFLY, eFly, and MagFly systems.
Powering the device is simple and efficient. It accepts 100–240V AC input at 50/60Hz and draws just 2.2 watts, making it energy-efficient while still delivering reliable performance. A standard T1.25A/250V fuse protects the device.
Whether you're building a touring rig or installing a permanent system, the Aria X2 IPH offers unmatched versatility, professional-grade performance, and industry-wide compatibility in a single, weatherproof package.
Features
- Single DMX Universe
- Sub-GHz 2.4 GHz Bands and Bluetooth
- Bluetooth 4.2
- Configuration via App or Front panel
- Wireless to DMX or DMX to Wireless
- IP67 Housing
Specifications
Supported Protocols:
- DMX512
- Proprietary 802.15.4
- Aria X2 Mesh Protocol
- Bluetooth 5.2 (BLE)
- Aria X2 Serial Protocol (This is our proprietary serial protocol for communicating with a variety of fixtures.)
RF Characteristics:
- Frequency range
- Bluetooth: 2402-2480 MHz
- Zigbee: 863-870 MHz (EU)
- SM220: 902-928 MHz (US)
- Radio module: Aria X2
- Interference mitigation
- CSMA
- Adaptive frequency hopping (on the roadmap)
- OTA updates
Power:
- Power Input: AC100-277V 50/60Hz
- Power Consumption: 2.2W (19mA) @ 120V/60Hz, 2.2W (10mA) @ 230V/50Hz
- Power Fuse: T1.25A/250V. (5 x 20mm)
Physical:
- IP67 Enclosure
- Front panel digital screen

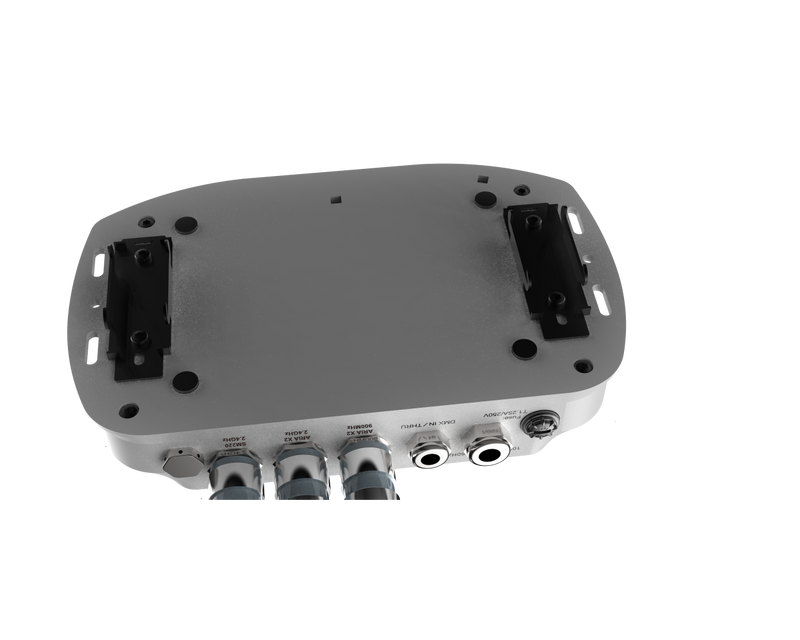

- M12 Threads
- Max ambient operating temp range: -4°F to 113°F (-20°C to 45°C)
- Max operating humidity: <75%
- Storage temperature: 77°F (25°C)
Dimensions and Weight:
- Length: 9.20" (233.7mm)
- Width: 6.29" (159.9mm)
- Height: 1.81" (46mm)
- 3.7lbs (1.66kgs.)
