While the ANX4 itself ships without wireless channels, you can acquire channels via single- or four-channel incremental licenses, allowing you to build an optimal system. Purchased channel licenses can be transferred between multiple ANX4 receivers via your ShureCloud account, enabling dynamic optimization of receivers for specific events on a per-situation basis. The ANX4 can also be managed and controlled remotely via Shure Wireless Workbench. The receiver supports all features from Axient and ULX-D systems, including ULX-Ds High-Density mode. The ANX4 features Ethernet and Dante connectivity, four RF antenna connectors (antennas sold separately), and full 256-bit AES encryption technology. The ANX4 includes a 19" rackmount, BNC bulkhead adapters, BNC cables, and an Ethernet cable.

Note: this purchase includes the ANX4 hardware receiver only. It does not include any licenses for wireless audio channels.

Maximize Channel Count, Minimize Space

The ANX4 minimizes space by providing the ability to tackle high channel counts across two popular wireless systems (Axient and ULX-D) from a single-rack device, reducing consumed rack space, weight, heat, and cost. The system provides all the same features and benefits of the Axient and ULX-D systems in a compact, configurable device. Note: system features are dependent upon the activated transmission mode and the ANX4 receiver does not support both Axient and ULX-D wireless operation simultaneously.

Build Your Ideal System with Incremental Licenses

The scalable channel expansion feature of the ANX4 receiver means you can optimize your receiver for your particular needs, dynamically. Purchase as many incremental channel licenses (single- and four-channel licenses available) as you need for your device and manage them remotely from your ShureCloud account. You can even purchase multiple ANX4 receivers and transfer channel licenses back and forth between devices as needed.

For example, need more channels on one receiver in NYC for a special event? You can simply transfer channels from your device in LA for expansion, and then transfer them back when you no longer need them. Note: the ANX4 does not ship preconfigured with wireless channel licenses. A separate purchase of at least once license is required for wireless operation with an ANX4 receiver.

Streamlined Design

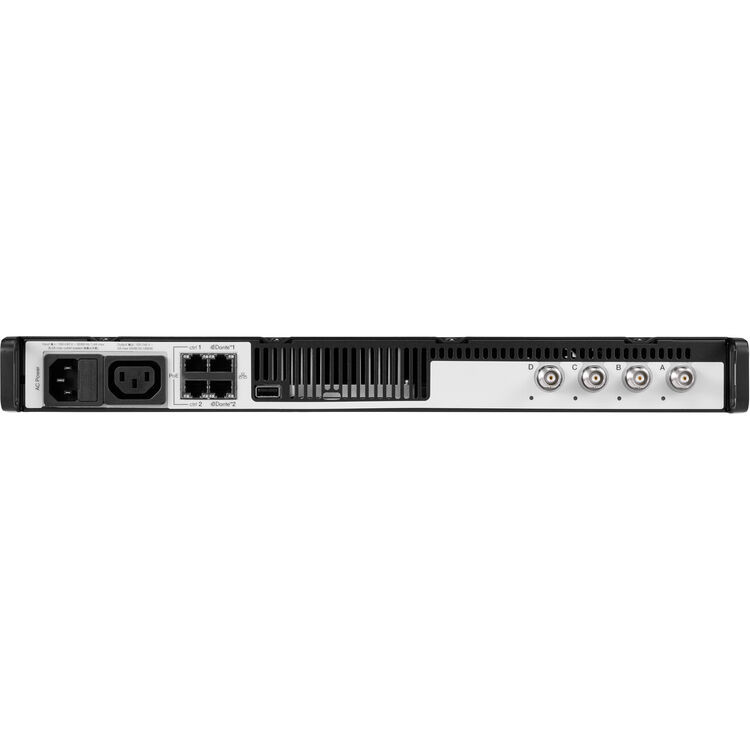

The single-rack format of the ANX4 helps to greatly reduce the size of your wireless audio setup. The receiver offers four RF antenna connectors. Thanks to Shure's meticulous design, this is all you need. No additional antenna distribution gear is required to get the most out of your Axient or ULX-D wireless system.

Features

Requires ANX4 Channel License
Up to 16 Axient and 24 ULX-D Channels
Scalable Channel Count
Compact Single Rack Space
Streamlined Design with 4 Antenna Jacks
Network and Dante Compatible
High-Density Mode Supported
Controllable via WWB and ShureCloud

Includes

Shure ANX4 Multi-Channel Wireless Receiver (174 MHz to 2 GHz)
19" Rackmount
BNC Bulkhead Adapters
BNC Cables
Ethernet Cable (4.9')

Specifications

System

Wireless Technology	Digital 1.9 GHz / Digital VHF
Diversity	Yes, True Diversity
RF Frequency Band	174 to 2000 MHz
Encryption	AES 256
Built-In Recorder	No
Timecode Support	No
Mobile App Compatible	No

Receiver

Receiver Type	1x Rackmount (19")
Mounting Options	Rackmount (with Included Hardware, 1 U)
Antenna	4x BNC Port (No Antenna Included)
Number of Audio Channels	24
Audio I/O	1x 1/4" TRS Headphone Output
Slot-Mount I/O Adapters	No
Network I/O	2x RJ45 (Ethernet) 2x RJ45 (Dante)
USB/Lightning Connectivity	1x USB-A Female
Display	Multi-Segment LED Meters
Power Requirements	AC Input

Transmitters

Included Transmitters

No Transmitters Included

Microphones

Microphone Type

No Microphone Included

Power

Included Charging Case

Charging Case

AC/DC Power Adapter

Physical

Environmental Resistance

Other Details

Every Shure® product comes with a Limited Warranty that in normal use the product will be free of any defects in materials or workmanship for a period of one or two years from its original date of purchase. However, this is not intended as a complete statement of the actual Limited Warranty applicable to any product. The Limited Warranty includes other important terms, conditions, limitations, and exclusions. For the actual Limited Warranty applicable to any product, please refer to the warranty card issued by Shure and packaged with the product, or contact Shure Incorporated or its authorized retailer.* * Shure Limited Warranty does not apply to Shure software products – please see the associated software license agreement for any warranty applicable to such products. Shure Limited Warranty does not apply to customized Shure products – please see the relevant custom product webpage(s) for any warranty applicable to such custom products. Shure Limited Warranty covers only Shure-branded products - for third party products distributed by Shure, please contact the manufacturer of such product for warranty information.
