Product Description
Pathway Connectivity PWREP WM P12 TERM RDM MED eDIN DMX/RDM 12-Way Installation Repeater (Old Part #4815)
RDM-enabled opto-splitters in NEMA1 assemblies, for permanent installation. Complete with conduit knockouts and terminal strip connections for fast, easy installation. ETL certified.

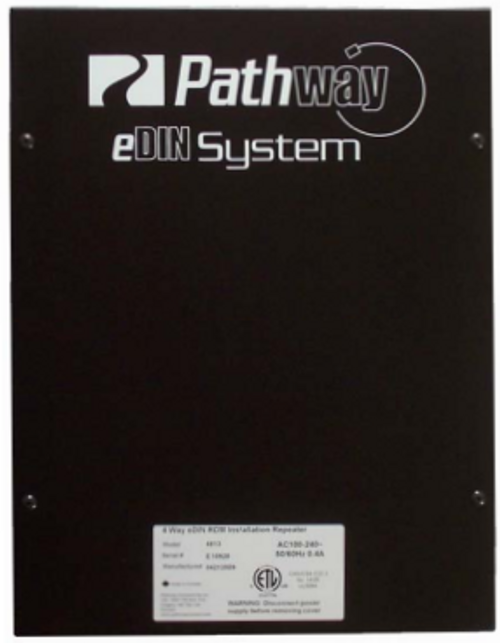

Please note: The 4813 model is shown in the images above.
Features
- Internally pre-configured and pre-wired, ready for installation
- Four, eight or twelve output models
- Up to three inputs, or daisy-chain a single source
- Removable terminal strip connectors
- No fuses—data links self-reset after overcurrent removed
- Wide range power supply
- Power, processor and DMX/RDM activity LEDs
- Per-port ISO 5V and RDM activity LED indicator
Specs
- 2500V opto-isolation between input and output ports
- 250V fault protection on input and output ports
- 6W power consumption per installed 4-way module
- Operating conditions: 0-40°C; 10-90% relative humidity, non-condensing
- 10.25” x 23.25” x 4.5” (260mm x 335mm x 120mm)
- 14.3 lb shipping weight (6.5 kg)
- Compliance
- ANSI E1.11 DMX512-A
- ANSI E1.230 RDM (Remote Device Management)
- RoHS 2002/95/EC
- ETL-listed
