Product Description

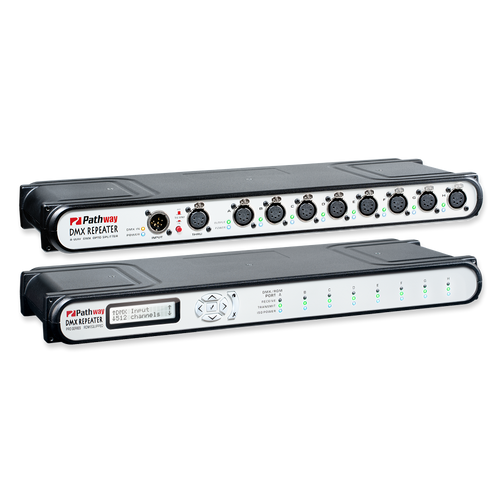

Pathway Connectivity PWREP RM P8 XLR5F FRONT NONRDM DMX Repeater, Rack-mount, 8-Ports, XLR 5-Pin Female, Front Panel Connectors, DMX Only (Old Part #9016)
The Pathway DMX Repeater series of opto-splitters are an essential component of DMX distribution systems, permitting star-wiring configurations while isolating and protecting equipment from electrical faults. RDM Hub models provide Ethernet-type intelligence features on a pure DMX512 network. The front panel allows the unit to be used as an RDM controller. Other advanced features include input sensing, prioritization between two controllers, or HTP merging of two sources with one source able to roam - ideal for incorporating remote focus units.
Features
Non RDM Models
- 8 DMX512 Outputs
- 1 DMX512 Input, 1 Passive DMX512 Thru
- DMX line termination switch
RDM Hub Models
- 8 bi-directional DMX512 Ports
- Three modes: RDM, Merge, and Hub
- Fully configurable from the front panel interface
- RDM Discovery and end device management from the front panel
- RDM enable/disable on a port-by-port basis
- Merge two controllers without additional equipment
- Automatically switch a console between locations by simply unplugging and replugging the console
- User-configurable DMX output speed and signal loss behavior
Common Features
- Gold-plated XLR Contacts
- No fuses - self-resetting port protection recovers from voltage faults
- Truss-mount (PWACC TMLG) and Wallmount (PWACC WMLG) accessory kits available
- Silent, fan-less operation
- Rack-mount ears included
- Also available in DIN-mount (PWREP DIN) and Wall-mount (PWREP WM) form factors
Accessories
- PWCON PH5 CSC5 Q12 Connector, 5-Pin Phoenix, 5-Pin Compression Screw Connector, (Qty 1)
- PWCON PH5 IDC5 Q12 Connector, 5-Pin Phoenix, 5-Pin Insulation Displacement Contact Connector, (Qty 1)
- PWACC WMLG Pathway Accessories Large Rack-mount to Wall-mount Kit
- PWACC TMLG Pathway Accessories Large Rack-mount to Truss-mount Kit
